(4) Door, PTC Outputs Kit

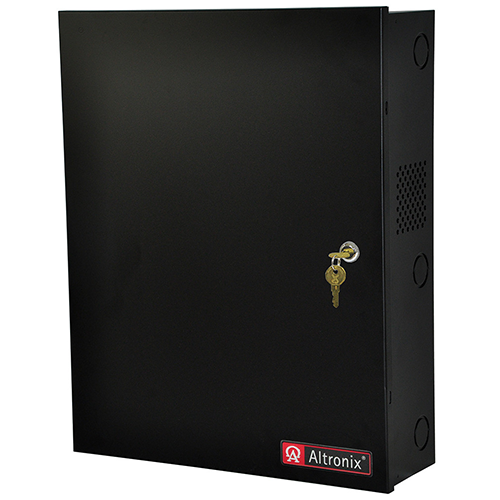

Altronix Trove Mercury kits are pre-assembled and consists of Trove1M1 enclosure/ backplane with factory installed Altronix power supply/charger and sub-assemblies. These kits also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

• Power Supply (eFlow4NB):
  • Input:
    • Voltage: 120VAC, 60Hz.
    • Fusing: 5A / 250V.
  • Output:
    • Voltage: 24VDC.
    • Current: 4A continuous.
    • Other: Overvoltage protection. Filtered and regulated.
• Battery Backup:
  • Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
  • Type: Sealed lead acid or gel type.
  • Fuse: Rating 10A/32V.
  • Failover: Upon AC loss, instantaneous.
• Supervision:
  • AC Failure: Form "C" contacts.
  • Battery: Form "C" contacts.
  • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
• Indicators LED:
  • Input: 120VAC is present.
  • DC Output: Powered.
  • Battery: Discharged or not connected.
• Voltage Regulator (VR6):
  • Input: Voltage: 24VDC from eFlow4NB.
• Output:
  • Voltage: 12VDC.
  • Current: 6A continuous.
  • Other: Surge suppression.
• Indicators (LED):
  • Input: 24VDC is present.
  • Output: Powered.
• Access Power Controller (ACM4CB):
  • Input:
    • Voltage: 24VDC from eFlow4NB.
    • Fusing: 10A / 250V.
  • Output:
    • Voltage: 24VDC.
    • Four (4) independently controlled 2.5A outputs:
    • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
    • b) Any combination of the above.
    • Four (4) auxiliary power outputs (unswitched).
  • Outputs Ratings: PTCs: 2.5A.
  • Indicators (LED):
    • Red LEDs: Outputs are triggered (relays energized).
    • Green LED: FACP disconnect is triggered.
