TROVE1M1 - Access and Power Integration

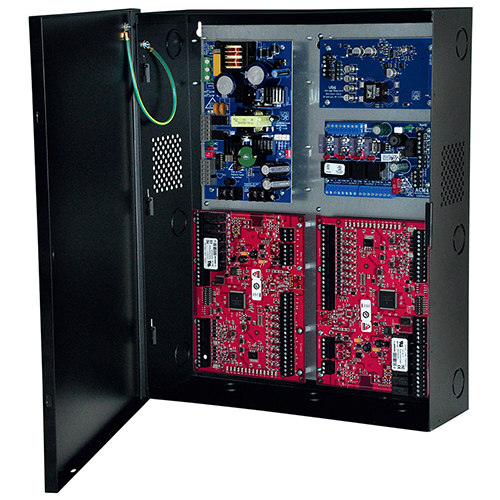

Altronix Trove Mercury kits are pre-assembled and consists of Trove1M1 enclosure/ backplane with factory installed Altronix power supply/charger and sub-assemblies. These kits also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

• Power Supply (eFlow4NB):
  • Input
    • Voltage: 120VAC, 60Hz.
    • Fusing: 5A / 250V.
  • Output:
    • Voltage: 24VDC.
    • Current: 4A continuous.
    • Other: Overvoltage protection. Filtered and regulated.
• Battery Backup:
  • Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
  • Type: Sealed lead acid or gel type.
  • Fuse: Rating 10A/32V.
  • Failover: Upon AC loss, instantaneous.
  • Supervision:
    • AC Failure: Form C contacts.
    • Battery: Form C contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED:
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • Voltage Regulator (VR6):
    • Input:
      • Voltage: 24VDC from eFlow4NB.
    • Output:
      • Voltage: 12VDC.
      • Current: 6A continuous.
      • Other: Surge suppression.
    • Indicators (LED):
      • Input: 24VDC is present.
      • Output: Powered.
    • Access Power Controller (ACM4):
      • Input:
        • Voltage: 24VDC from eFlow4NB.
        • Fusing: 10A / 250V.
      • Output:
        • Voltage: 24VDC.
        • Four (4) independently controlled 2.5A outputs:
        • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
        • b) Four (4) dry form C 5A rated relay outputs.
        • c) Any combination of the above.
        • Four (4) auxiliary power outputs (unswitched).
      • Outputs Ratings:
        • Fuses: 3A / 32VDC.
      • Indicators (LED):
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
