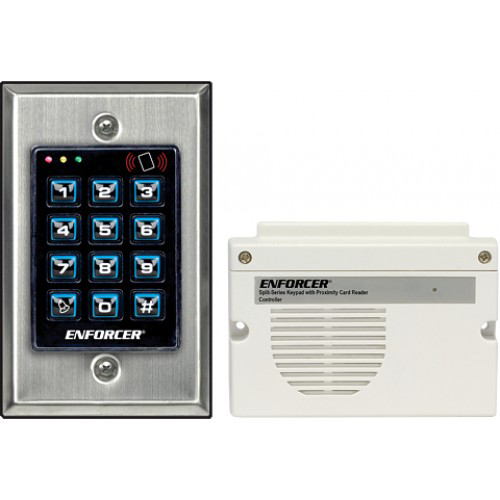

Split Series Keypad with Proximity Card Reader

Item #:SK-4131-SPSQ
You must be logged in to order this item.
Log in here
SK-4131-SPSQ
  • Split series installation for added security – keypad and controller are separate thereby preventing access via keypad tampering
  • 12~24 VDC Auto-adjusting operation
  • Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
    • Output #1: Form C relay, 5A@24VDC max.
    • Output #2: Form C relay, 1A@24VDC max.
    • Output #3: Form C relay, 1A@24VDC max.
  • Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output: N.C. Dry contact, 50mA@24VDC max.
  • Keypad illuminates when a button is pressed; backlight can be programmable for FULL or AUTO in standby mode
  • Built-in door chime
  • Built in current limited (750mA) power source for keypad for added security
  • Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
  • Keypad mounts to a standard single-gang back box (surface-mount back box included)
  • All features are programmed directly from the keypad: No need for an external programmer
  • EEPROM Memory protects programmed information in case of power loss
  • Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
  • Programmable egress input with optional warning alarm and delayed egress
  • Door sensor input for anti-tailgating operation
  • Interlocking input for connecting to a second keypad for mantrap applications
  • Simple three wire connection between keypad and controller

Access Control Controls/Panels

Brand
Seco-Larm
SK-4131-SPSQ
Split Series Keypad with Proximity Card Reader
