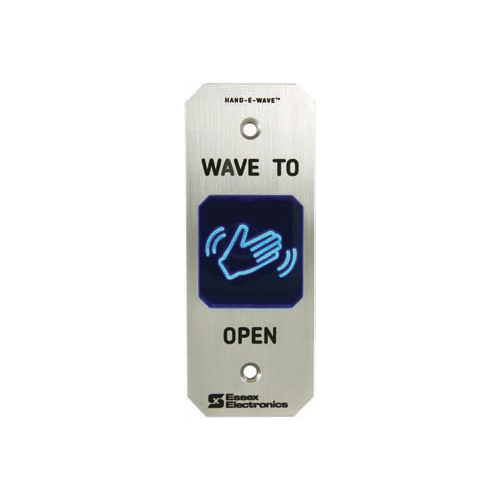

Hand-E-Wave Touchless Switch, Narrow
Item #:HEW-1
You must be logged in to order this item.
Log in here
Log in here
![HEW-1](/images/items/HEW-1.png)
- Power Requirements: 5VDC or 12 to 24VAC/DC. 300mw Standby, 600mw Relay On
- Outputs: One SPDT Relay, 2A 30VDC Resistive, 1/2A 125VAC
- Field Programmable Output Mode: Select either Toggle or Timed Output from 1 to 30 seconds
- Switch Technology: 24GHz Microwave Doppler Radar
- Detection Range: 2" to 24" Field Adjustable (typical)
- Detection Mode: Motion (bidirectional)
- Operating Environment: IP66 Rated
- Operating Temperature:-40°C to +82°C (-40°F to +180°F)
- Operating Humidity: 100% Relative Humidity
- Wire Harness Length: 12 inches
- Dimensions: 4.5" (H) x 1.75" (W) x 1" (D)
Access Control Request to Exit Devices
Brand
Essex Electronics
![HEW-1](/images/items/HEW-1.png)
Hand-E-Wave Touchless Switch, Narrow
