Home  >  Fire  >  Indicating Devices  > 50 Watt Amplifier. 1 Speaker Circuit, Mounts inside a 5820XL-EVS

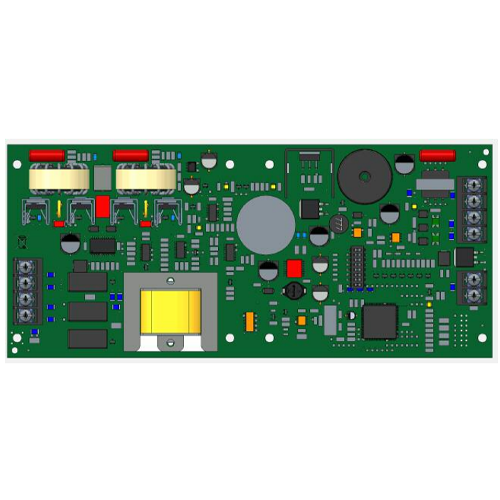

50 Watt Amplifier. 1 Speaker Circuit, Mounts inside a 5820XL-EVS

Item #:EVS-INT50W
You must be logged in to order this item.
Log in here
EVS-INT50W

  • SBUS addressable
  • 50 watts of supervised audio power
  • One Class A or Class B speaker circuit
  • 25 volt or 70.7 volt operation
  • UL 864 and UL 2572
  • Easy to install assembly in the 5820XL-EVS cabinet
  • Six-wire connection to the EVS system:
    • Two-wires for the Voice BUS
    • Two-wires for the SBUS
    • Two-wires for the 24 VDC power source from an I/O circuit on the 5820XL-EVS programmed for constant auxiliary power
  • UL listed for 520Hz signaling when used with compatible System Sensor speakers. See 5820XL-EVS installation manual LS10061-001SK-E for list of compatible speakers

Fire Indicating Devices

Brand
Silent Knight
EVS-INT50W
50 Watt Amplifier. 1 Speaker Circuit, Mounts inside a 5820XL-EVS
