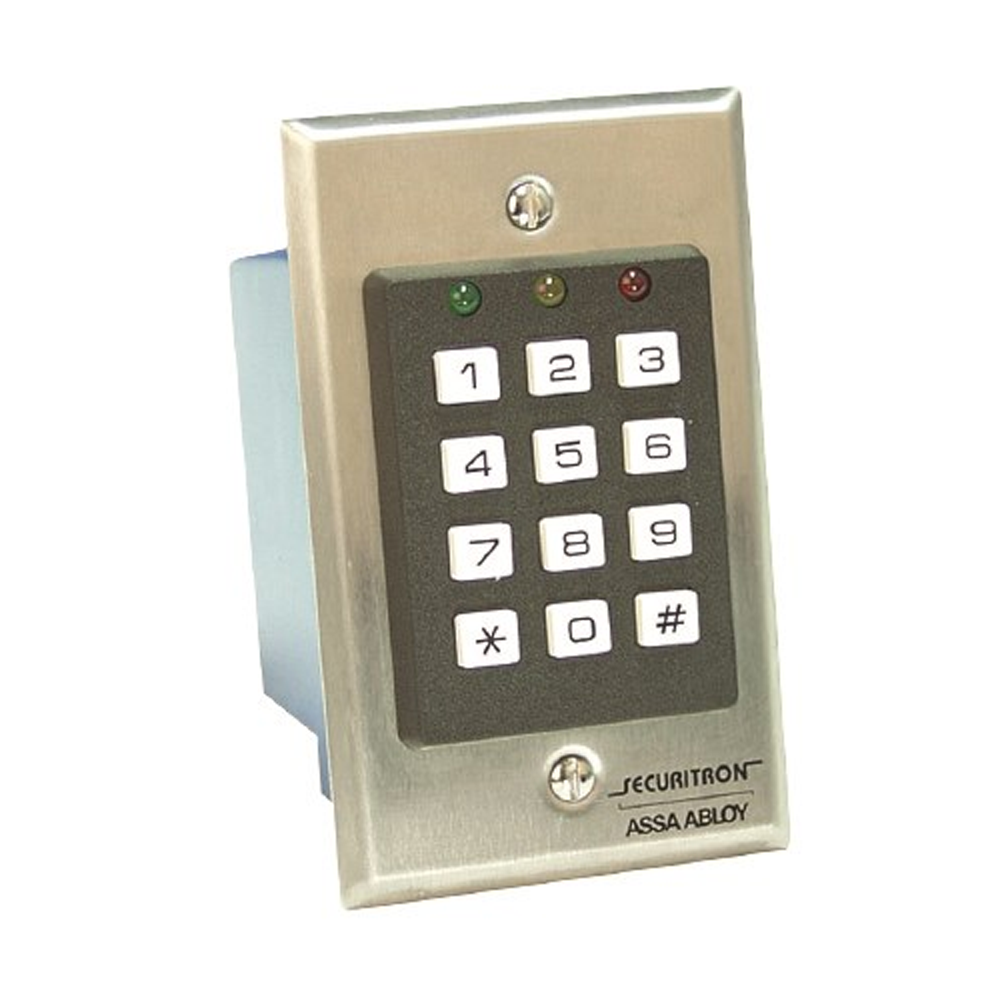

Digital Keypad Systm - Indoor, Single Gang

The DK-16 digital keypad system provides medium/high security control of electric locks in a one- or two-door application where both doors have the same control needs. The tamper-resistant 3x4 keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.

Features

• 12 key 3x4 keypad with engraved and paint filled numbers
• Stainless steel plate
• Red, green and yellow LEDs for status and programming feedback
• Audible keystroke echo
• Controller mounted in plastic enclosure
• 59 users
• User code and/or hard code disable feature
• 5A DPDT relay output
• Request to exit (REX) input
• True 10 digit operation (keys are not paired), 3 LEDs and a beeper
• 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
• MagnaCare lifetime replacement, no fault warranty
