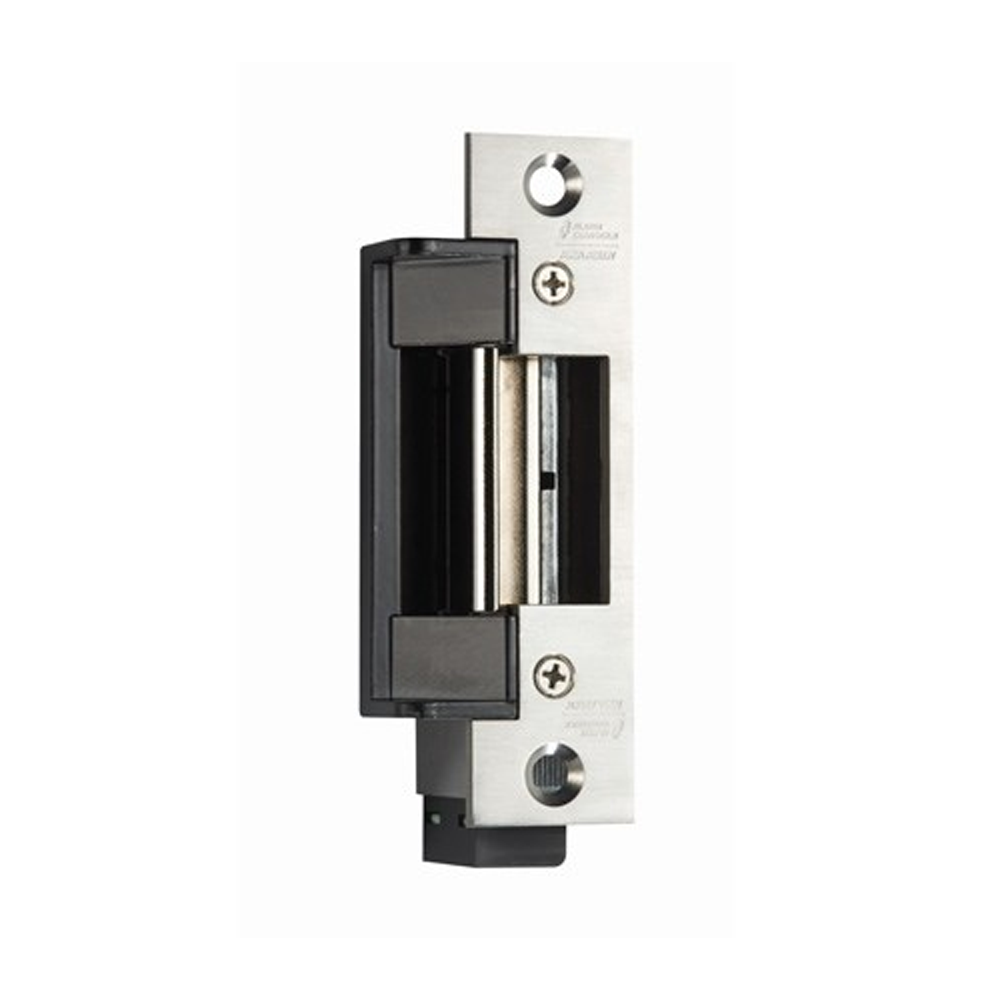

Electric Door Strike

Designed for heavy-duty applications, the all-in-one AES-100 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8 in to 3/4 in throw in steel, wood or aluminum frames.

Features

• BHMA Grade 1
• UL 1034 Burglary Resistant, 1500 lb. static strength
• Static strength 70 ft-lbs. Dynamic strength endurance rating 500,000 UL tested,1,500,000 factory tested
• Strike depth 1-1/2 in.
• Field selectable, fail safe/fail secure
• Dual voltage 12/24 VAC or VDC, continuous duty operation on DC
• Fully reversible for right or left hand doors
• Mounting kit includes two 4-7/8 in. stainless steel face plates (one round corner and one square corner)
• Current draw 12 VAC 130mA, 24 VAC 70mA
• Current draw 12 VDC 210mA, 24 VDC 105mA
• 7-7/16 in. round corner strike plate available. Model number STR00004
