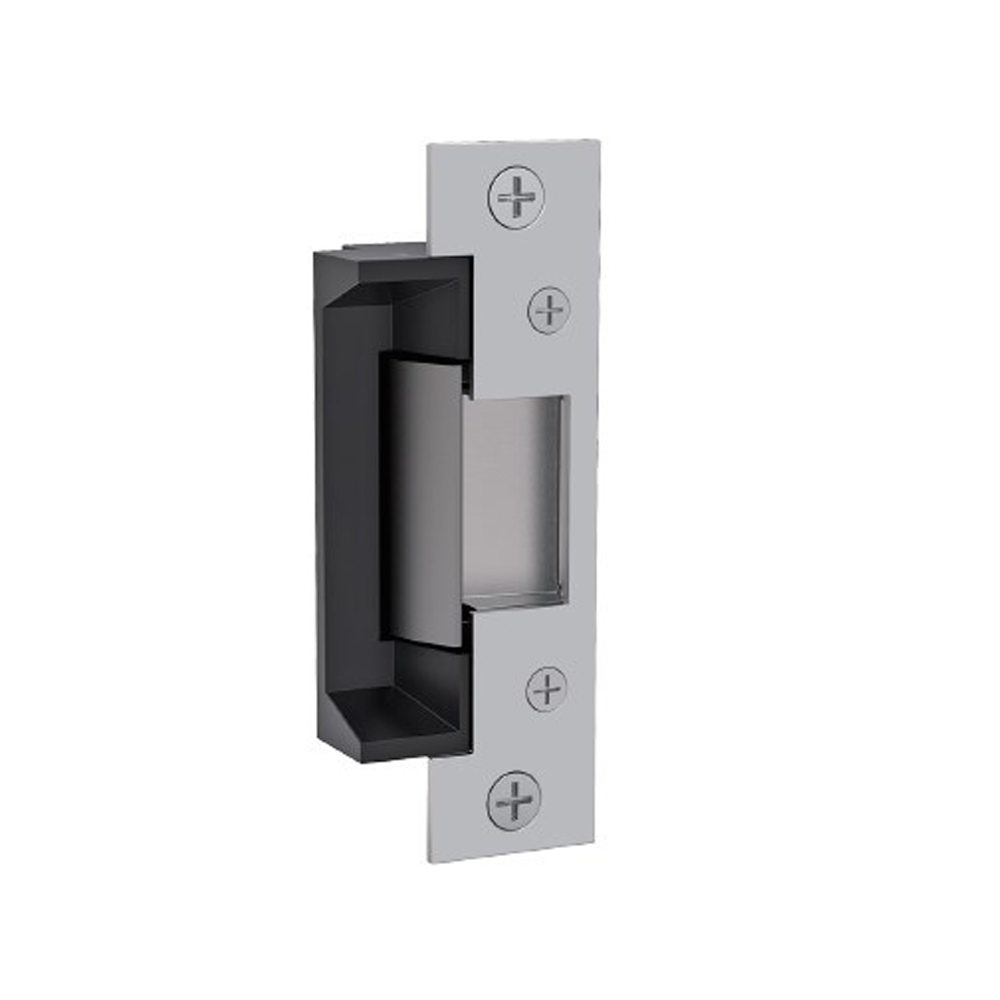

SB: 5000-12/24D Strike Body

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8 in. throw.

Features

• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• Field selectable fail secure/ fail safe
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2 - 5/8 inch latchbolt (5/8 in. with 1/8 in. door gap)
• Strike body depth 1-1/16 in.
• Plug-in connector
• Trim enhancer included
• Five year limited warranty
