8-Door Altronix/Mercury-Lenel Access and Power Integration Kit

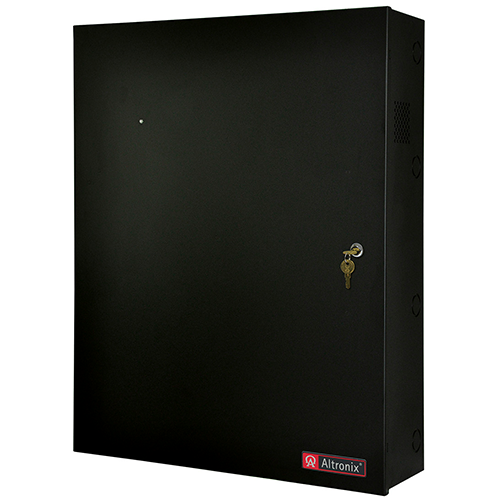

Altronix T2MK3F8 is pre-assembled and consists of Trove2M2 enclosure with factory installed Altronix power supply/charger(s) and sub-assemblies. This kit also accommodates various combinations of Mercury boards for up to eight (8) doors in a single enclosure.

• Input: 120VAC 60Hz/3.5A.
• Output:
  • 24VDC up to 5.8A max current.
  • Eight (8) Fail-Safe/Fail-Secure or Dry Form "C" Outputs
• Fully assembled kit includes:
  • Trove2 enclosure with TM2 backplane
  • One (1) eFlow6NB - Power Supply/Charger
  • One (1) ACM8 - Fused Access Power Controller
  • One (1) VR6 - Voltage Regulator
  • One (1) PDS8 - Dual Input Power Distribution Module
• Back-up Battery (not included):
  • Capacity: 12AH / 12VDC (Up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
  • Type - Sealed lead acid or gel type.
  • Fuse Rating: 10A/32V
  • Failover - Upon AC loss, instantaneous.
• Supervision:
  • AC Failure - Form "C" contacts.
  • Battery - Form "C" contacts.
  • Low DC Power Shutdown - Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
• LED Indicators:
  • Input - 120VAC is present.
  • DC Output - Powered.
  • Battery - Discharged or not connected.
