8-Door Altronix/Keyscan Access and Power Integration Kit

Item #:T2KK3F8D
You must be logged in to order this item.
Log in here
T2KK3F8D

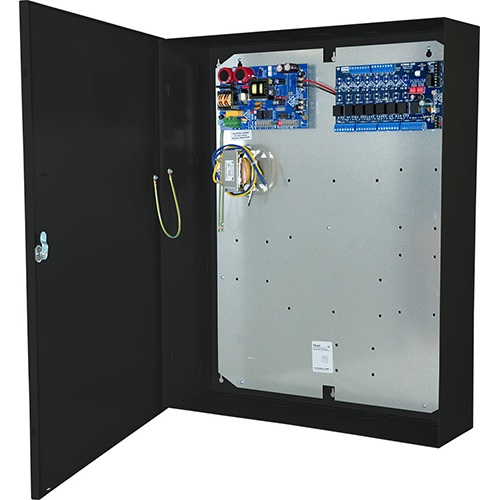

AAltronix T2KK3F8D is pre-assembled and consists of Trove2 enclosure with factory installed Altronix power supply/chargers, transformer, and sub-assemblies. These kits also accommodates various combinations of Keyscan boards for up to eight (8) doors in a single enclosure.

  • Input: 120VAC 60Hz/3.5A.
  • Output:
    • 24VDC up to 5.8A max current.
    • Eight (8) Fail-Safe/Fail-Secure Outputs (auto-resettable)
  • Fully assembled kit includes:
    • Trove2 enclosure with TKA2 backplane
    • One (1) eFlow6NB - Power Supply/Charger
    • One (1) ACM8CB - PTC Access Power Controller
    • One (1) T16100 Transformer
  • Back-up Battery (not included):
    • Capacity: 12AH / 12VDC (Up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
    • Type - Sealed lead acid or gel type.
    • Fuse Rating: 10A/32V.
    • Failover - Upon AC loss, instantaneous.
  • Supervision:
    • AC Failure - Form "C" contacts.
    • Battery - Form "C" contacts.
    • Low DC Power Shutdown - Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • LED Indicators:
    • Input - 120VAC is present.
    • DC Output - Powered.
    • Battery - Discharged or not connected.
