Home  >  ACCESS CONTROL  >  CONTROLS/ACCESSORIES  > Access and Power Integration - Kit includes Trove1R enclosure with Altronix

Access and Power Integration - Kit includes Trove1R enclosure with Altronix / Software TSH1R backplane

Item #:T1RSH3F8
You must be logged in to order this item.
Log in here
T1RSH3F8

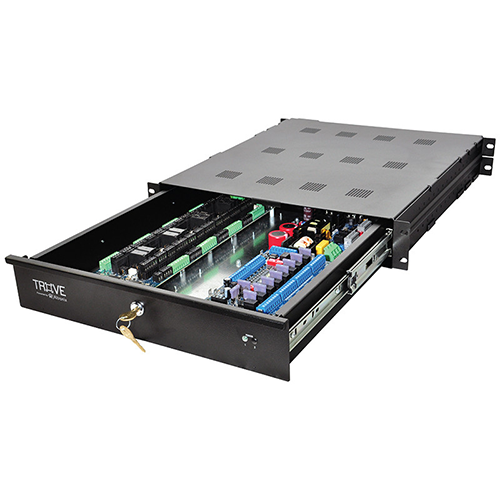

Altronix T1RSH3F8 rack kit is pre-assembled and consists of Trove1SH1R enclosure/backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of Software House boards for up to eight (8) doors in a single enclosure.
Power Supply (eFlow6NB):
Input
  • Voltage: 120VAC, 60Hz, 3.5A max.
  • Fusing: 5A / 250V.
Output
  • Voltage: Factory set at 24VDC.
  • Current: 6A continuous.
  • Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board and ACMS8 Access Power Controller’s outputs is 5.6A.
  • Auxiliary: Class 2 power-limited @ 1A (unswitched).
  • Other: Overvoltage protection. Filtered and regulated.
Battery Backup
  • Built-in charger for sealed lead acid or gel type batteries (if batteries are required, install separate battery enclosure RE2).
  • Automatic switch over to stand-by battery when AC fails.
  • Zero voltage drop when unit switches over to battery backup (AC failure condition).
Fire Alarm Disconnect
  • Supervised: Latching or non latching.
  • EOL: 10K Resistor.
Supervision
  • AC Failure: Form “C” contacts.
  • Battery: Form “C” contacts.
  • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
  • Input: 120VAC is present.
  • DC Output: Powered.
  • Battery: Discharged or not connected.
Access Power Controller (ACMS8):
Input
  • Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
  • Fusing: 15A / 32V.
Output
  • Voltage: 12 or 24VDC individually selectable.
  • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs:
  • a) Fail-Safe and/or Fail-Secure power outputs.
  • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
  • c) Auxiliary power outputs (unswitched).
  • d) Any combination of the above.
  • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
  • Individual outputs may be set to OFF position for servicing.
  • Fuses Rating: 2.5A / 32VDC.
Indicators (LED)
  • Red LEDs: Outputs are triggered (relays energized).
  • Blue LED: FACP disconnect is triggered.
Individual voltage LEDs
  • Green: 12VDC
  • Red/Green: 24VDC
