7-Card Power Amplifier Mainframe with Integrated DSP, Supervision, and Amplifier Backup with Global Power Supply

Item #:T112
You must be logged in to order this item.
Log in here
T112

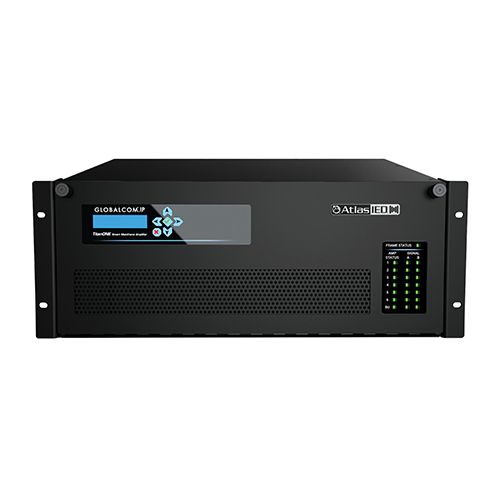

The AtlasIED TitanONE T112 Smart Mainframe Power Amplifier provides the latest signal automation, processing and amplification technologies in one modular solution. The modular design allows up to seven (7) TitanONE Series power amplifier cards (sold separately) to be easily inserted into the mainframe. This offers twelve-(12) main channels of amplification and two-(2) backup channels for redundancy. Each channel has a complete library of DSP filter options. Mainframe can also be used to provide power, house and configure via software dual channel line output cards T2LD-120V-T1 two-channel line driver or T2LD-230V-T1 two-channel line driver to drive external systems, or to provide processing for self-powered speaker arrays.
The TitanONE T112 is networkable offering IEDNet+ IP-based system control and digital audio transport via Dante™. TitanONE T112 integrates IED’s world-renowned SystemAssured™ Supervision for entire system monitoring and fault detection to ensure worry-free 24/7 operation. The TitanONE T112 doesn’t stop there, it also incorporates AtlasIED’s patented smart technology called AlwaysHEAR™. This ensures the audio levels are automatically adjusted to always be set at the perfect sound level. The TitanONE T112 offers over eight technologies in a single compact form factor and is the perfect solution for life safety systems and everyday installations.
The T112 meets the stringent standard requirements for life safety and mass notification systems. It is recognized by UL and it can easily be incorporated into any fire or life safety system. The T112 also has the ability to enter Power-Save Mode via contact closure or over the network. In this mode, all the power amplifiers are switched off unless needed for an emergency message. This is useful to save on battery or backup power supply drain when main power is lost for example.

Features
  • AlwaysHEAR™ - Patented Technology for Automatic Real-Time Ambient Noise Analysis and Output Level Adjustment
  • IEDNet+ Software Based Routing, Control, and Supervision of Network Connected AtlasIED Devices
  • Lifeline Supervision and Backup Amplifier Switching Ensures Even If an Amplifier Card Fails, the System Continues to Function
  • 16 Network Audio Inputs, Dante™ Enabled
  • Integrated DSP Per Output Channel Including Level Control, Routing, EQ, Delay, and Ducking
  • 12 Balanced Line Inputs
  • 12 Loudspeaker Outputs

New Catalog

Brand
ATLAS SOUND, LP
T112
7-Card Power Amplifier Mainframe with Integrated DSP, Supervision, and Amplifier Backup with Global Power Supply
