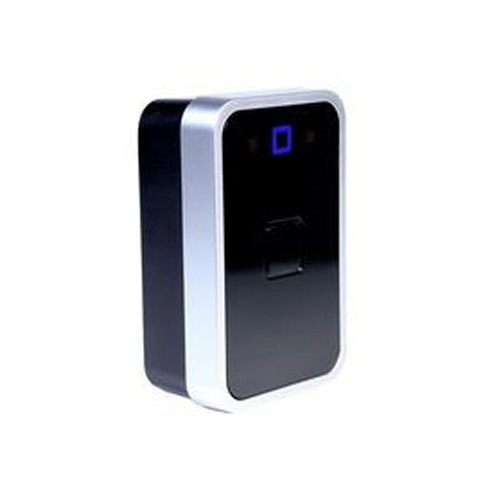

dormakaba Surface Mount Reader w/BLE

Item #:SRK-RNSC2
You must be logged in to order this item.
Log in here
SRK-RNSC2
Surface mount reader. Includes reader and combined BLE module and rear mounting plate. Reads the physical dormakaba lodging and multihousing 17 byte credential format and BLE App. Wiegand standard output.  Terminal strip connection on back of reader. Requires CF10004 or CF10010 ACU reader firmware. Works with CA150, CA250, CA4500 & CA8500 ACU’s. Does not work with elevator ECU’s. Powered by 12 Vdc @ 200 mA. Standard 500’ maximum distance with 6-Conductor reader cable.
  • For Surface mount applications
  • Reads dormakaba lodging and multihousing 17 byte physical credential format and BLE App.
  • Wiegand reader that reads the dormakaba lodging and multihousing  credential format
  • Requires CF10004 or CF10010 ACU firmware

New Catalog

Brand
DORMAKABA / KEYSCAN
SRK-RNSC2
dormakaba Surface Mount Reader w/BLE
