Power Supply Charger, Single Output, 12/24VDC @ 2.5A, 115/220VAC

Item #:SMP3PMCTX
You must be logged in to order this item.
Log in here
SMP3PMCTX

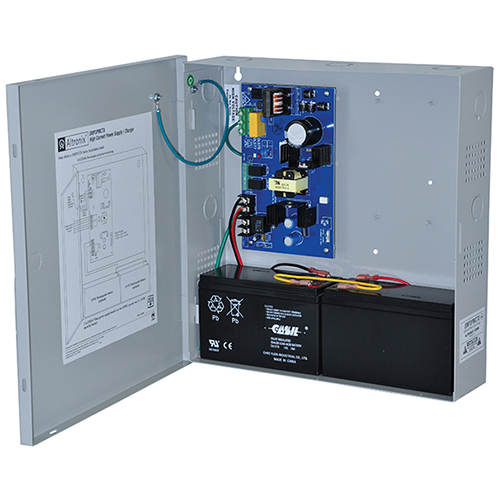

SMP3PMCTX supervised power supply/charger will convert a 115VAC/230VAC, 50/60Hz input, into a regulated 12VDC or 24VDC output @ 2.5A continuous supply current.

Specifications:
Input:

  • Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.
Output:
  • 12VDC or 24VDC selectable output.
  • 2.5A supply current.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.
Supervision:
  • AC fail supervision (form C contacts).
  • Low battery supervision (form C contacts).
Visual Indicators:
  • AC input and DC output LED indicators.
Temperature:
  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.):
    • 12VDC: 15 BTU/Hr.
    • 24VDC: 31 BTU/Hr.
  • System AC input VA requirement:
    • 115VAC: 74.75VA.
    • 230VAC: 80.5VA.
