Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC

Item #:SMP3PM
You must be logged in to order this item.
Log in here
SMP3PM

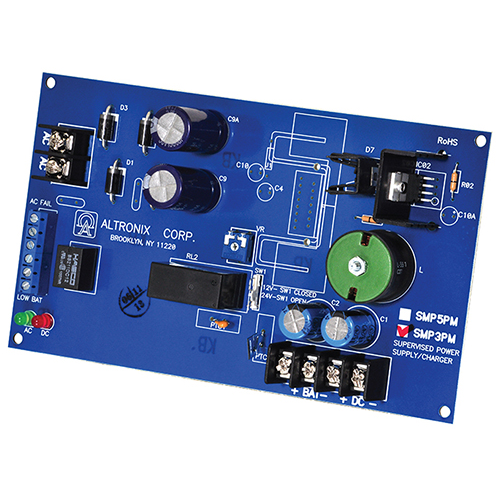

SMP3PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control,security and CCTV system accessories that require additional power.

Features:

  • Includes battery leads.

Specifications:
Input:
  • 12VDC applications use TP1640, T2428100.
  • 24VDC applications use T2428100.
Output:
  • 12VDC or 24VDC selectable output.
  • 2.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Battery short circuit protection (circuit breaker).
Supervision:
  • AC fail supervision (form C contacts).
  • Low battery supervision (form C contacts).
Visual Indicators:
  • AC input and DC output LED indicators.
Electrical:
  • Temperature:
    • Operating Temperature: 0° C to 49° C (32° F to 120° F).
    • Storage Temperature: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.):
    • 12VDC: 15 BTU/Hr.
    • 24VDC: 31 BTU/Hr.
  • System AC input VA requirement:
    • 12VDC: 55.2VA.
    • 24VDC: 115VA.
