Power Supply Charger, Single Output, 12/24VDC @ 10A, 24VAC, Board

Item #:SMP10
You must be logged in to order this item.
Log in here
SMP10

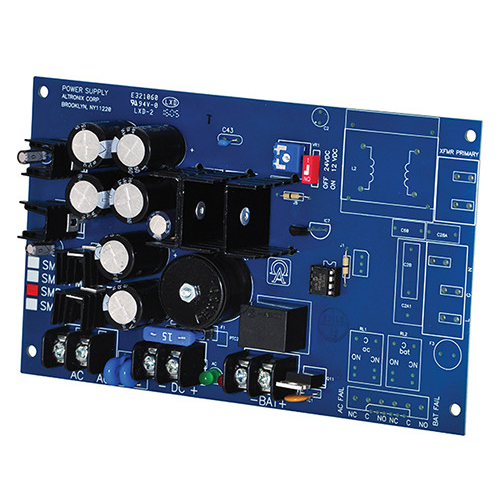

SMP10 power supply/charger converts low voltage AC input into 12VDC or 24VDC @ 10A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power (Voltage Output/Transformer Selection Table).

Specifications:
Input:

  • Input 24/28VAC.
  • (Voltage Output/Transformer Selection Table).
Output:
  • 12VDC or 24VDC selectable output.
  • 10A supply current.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.
Visual Indicators:
  • AC input and DC output LED indicators.
Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C (-4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.):
      • 12VDC: 61 BTU/Hr.
      • 24VDC: 123 BTU/Hr.
