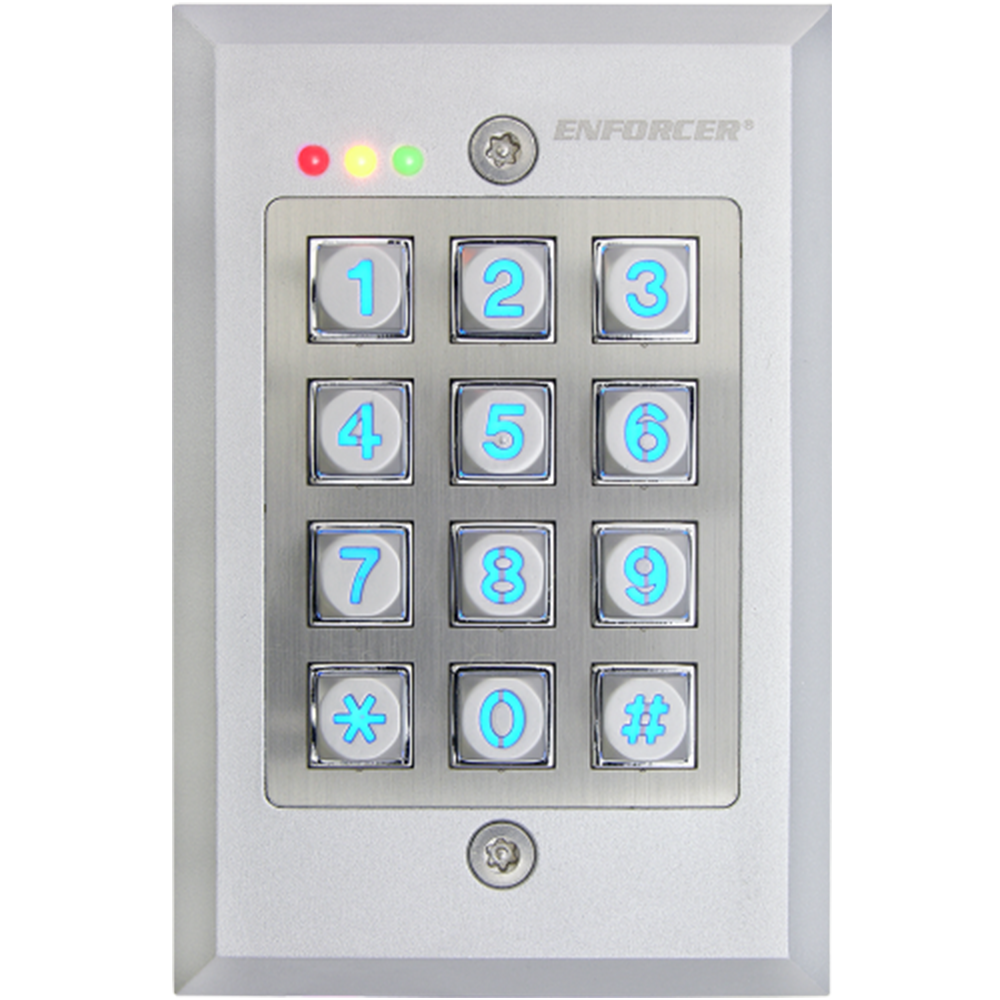

Flush-Mount Outdoor Illuminated Stand-Alone Keypad

Item #:SK-1123-FDQ
You must be logged in to order this item.
Log in here
SK-1123-FDQ

  • 12~24 VAC/VDC auto-adjusting operation
  • Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
  • Output #1: Form C relay, 1A@30VDC max.
  • Output #2: Transistor ground, 100mA@24VDC
  • Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output: N.C. Dry contact, 50mA@24VDC max
  • Mounts to standard single-gang back box
  • IP66 Weatherproof rating
  • Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
  • EEPROM Memory protects programmed information in case of power loss
  • Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
  • Duress code signals a silent alarm if an authorized user is forced to open the door under duress
  • Egress input lets users exit the premises without keying in the code
  • Door sensor input for anti-tailgating operation
  • Interlocking input for connecting to a second keypad
