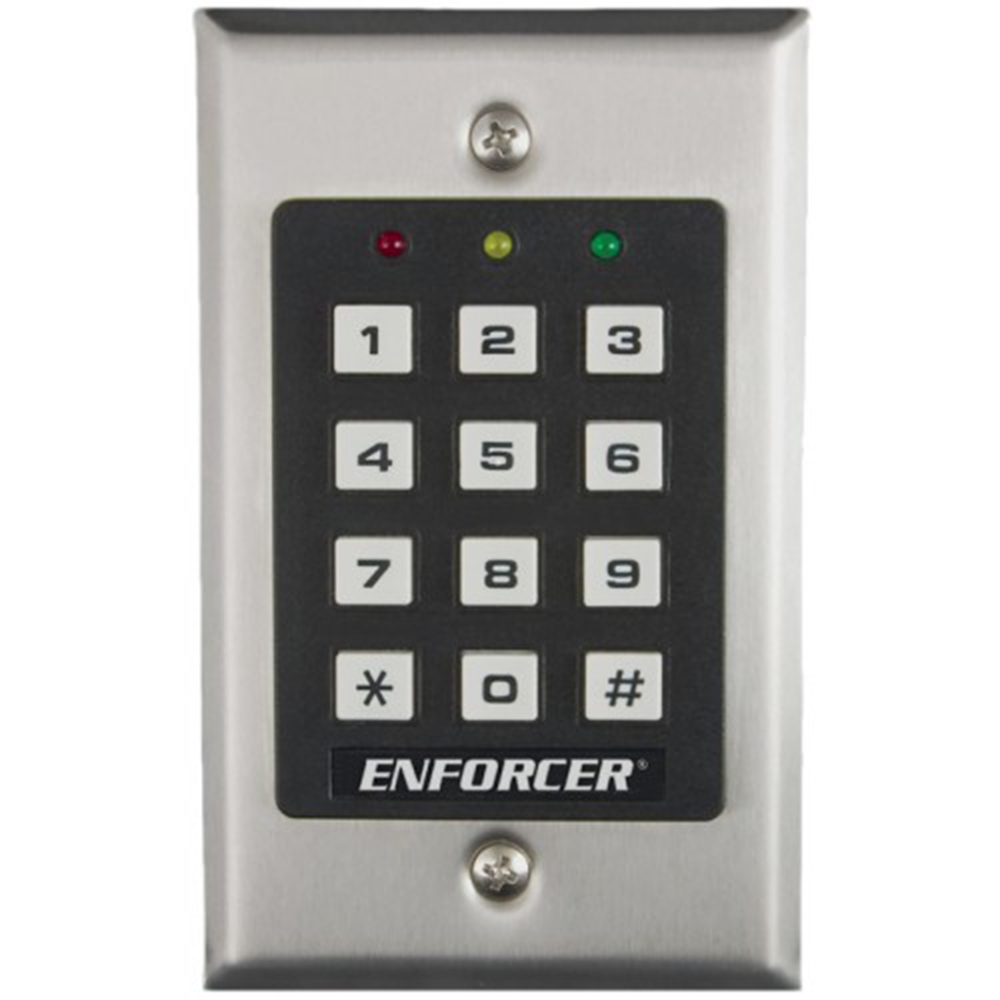

Indoor Stand-Alone Keypad with 1000 Users and One 1A Relay Output

Item #:SK-1011-SDQ
You must be logged in to order this item.
Log in here
SK-1011-SDQ

  • Up to 1,000 possible user codes (4-8 digits)
  • Output: Form C relay, 1A@30VDC max.
  • Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours)
  • Durable and attractive stainless-steel faceplate
  • Programmable delayed egress input lets users exit the premises without keying in the code
  • EEPROM Memory protects programmed information in case of power loss
  • 12~24 VDC/VAC Auto-adjusting operation
  • Tamper output: N.C. Dry contact, 50mA@24VDC max.
  • Mounts to a standard single-gang back box (surface-mount back box included)
  • Programmable wrong-code lockout
  • Real-time clock to auto-disable access at specific times
  • All features are programmed directly from the keypad: No need for an external programmer

Access Control Readers

Brand
Seco-Larm
SK-1011-SDQ
Indoor Stand-Alone Keypad with 1000 Users and One 1A Relay Output
