Relay Module, Ultra Sensitive, 12/24VDC, DPDT Contacts @ 1A

Item #:RBSNTTL
You must be logged in to order this item.
Log in here
RBSNTTL

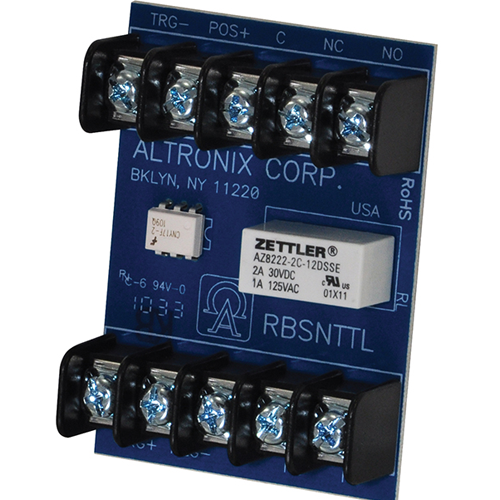

Altronix RBSNTTL ultra sensitive relay is designed for continuous duty. This rugged and dependable relay will handle any switching application.

Input Voltage

  • 12VDC to 24VDC selectable operation.
  • 3VDC to 24VDC 2mA - 16mA isolated trigger.
  • Current draw: 45mA.
Contact Rating
  • 1A/120VAC or 2A/28VDC DPDT contacts.
Temperature
  • Operating -25ºC to 55ºC ( -13ºF to 131ºF).
  • Storage -25ºC to 70ºC ( -13ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
  • System AC input VA requirement: 10.8VA.
