Timer, 365 Day 24 Hour Annual Event, 1 Channel, LCD Display

Item #:PT724A
You must be logged in to order this item.
Log in here

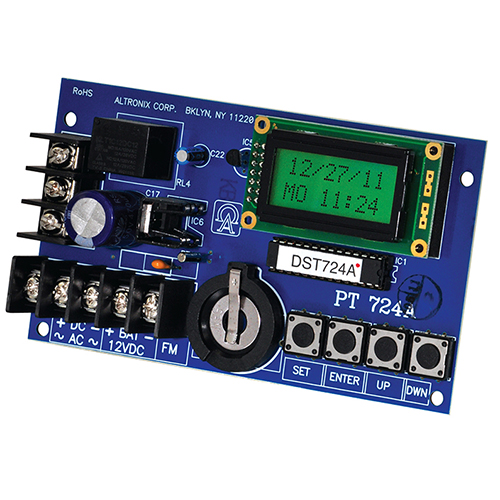

PT724A

PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.

Features:

  • EE Prom memory protects against loss of programming due to power failure.
  • Accurate crystal controlled clock.
  • Momentary and/or Latching Events.
  • 50 individually programmed daily/weekly events.
  • Block programming capacity can accommodate a total of 350 events per week.
  • 10 programmable Holiday dates.
  • "First man in" option.
  • Standard or Daylight Savings Time settings.
  • Automatic compensation for leap year.

Input
  • 12 to 24 volts AC or DC operation
Relay
  • Form "C" relay contacts are rated 10A @120VAC/28VDC.
  • Standby current: 10mA (relay off) 50mA (relay on).
Visual Indicators
  • Alphanumeric LCD display simplifies programming.
Battery Backup
  • Built-in charger for 12VDC sealed lead acid or gel type batteries(Max charge current 100mA).
  • Optional lithium battery backup maintains clock.
  • Order Altronix part # LB2032.
Temperature
  • Operating -20ºC to 49ºC ( -4ºF to 120ºF).
  • Storage -25ºC to 70ºC ( -13ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
