Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board

Item #:PD8ULCB
You must be logged in to order this item.
Log in here
PD8ULCB

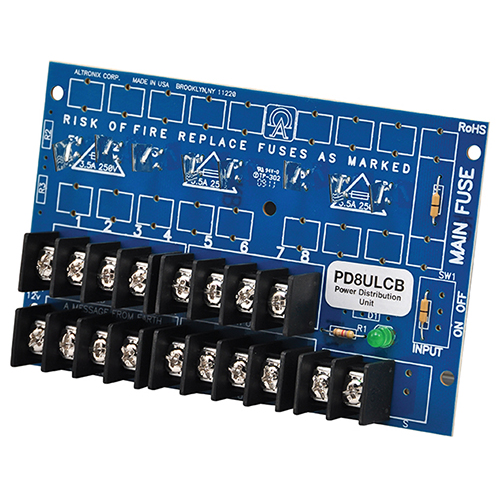

Altronix PD8ULCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into eight (8) PTC protected Class 2 Rated powerlimited outputs.

Specifications:
Input:

  • 12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.
Output:
  • Eight (8) individually PTC protected outputs @ 2A per output max. current (total output current should not exceed max. current rating of power supply employed).
  • PTCs rated @ 2A/250V.
Visual Indicators:
  • Power on green LED indicator.
Electrical:
  • Operating temperature: 0 to 49° C (32 to 120° F).
  • Storage - 20 to 70° C ( - 4 to 158° F).
  • Relative Humidity 85% +/- 5%.
