Power Distribution Module, 16 Fused Outputs up to 28VAC/VDC, Board

Item #:PD16W
You must be logged in to order this item.
Log in here
PD16W

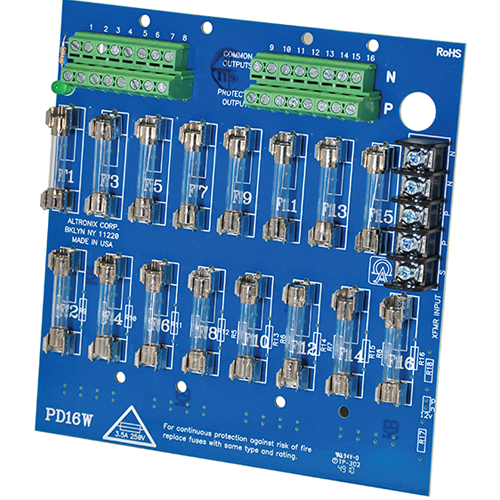

Altronix PD16W UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) individually fuse protected outputs.

Specifications:
Input:

  • 12VDC or 24VDC up to 10A or
  • 24VAC or 28VAC, up to 12A.
Outputs:
  • Sixteen (16) fuse protected outputs.
  • 2.5A per output max.
  • Total output current should not exceed max current rating of power supply employed.
  • Fuses are rated @ 3.5A/250V.
Visual Indicators.:
  • Power On green LED indicator.
Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
