Small Form-Factor Pluggable (SFP) Single Mode Transceiver

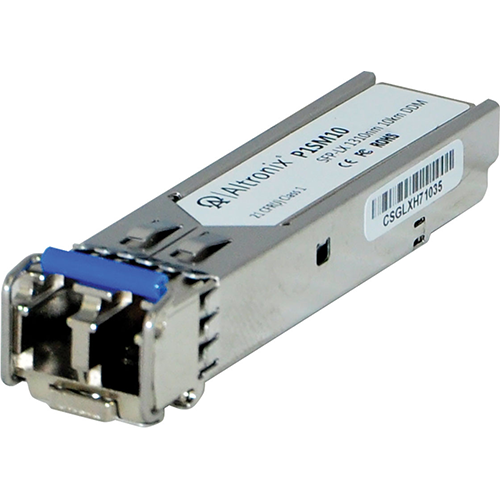

Altronix P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1G transmission rates. The P1SM10 is to be used with Single-Mode Fiber for distances up to 10Km. It is recommended to pair (two per fiber link) remote and head-end with same SFP module.

• Features:
  • IEEE 802.3a compliant.
  • Spans distances up to 10km (6.3 miles)
  • Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).
• Standards:
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant.
  • Compliant with MSA SFP Specification.
  • Compliant with SFF-8472.
• Connector Type:
  • LC Duplex.
• Data Rate:
  • Up to 1.25Gbps.
• Wave:
  • 1310nm FP Laser Transmitter.
• TX power (dBm):
  • -22 ~ -3
• RX Sensitivity (dBm):
  • -10 ~ -3
• Distance:
  • 10km with 9/125 micron SMF.
