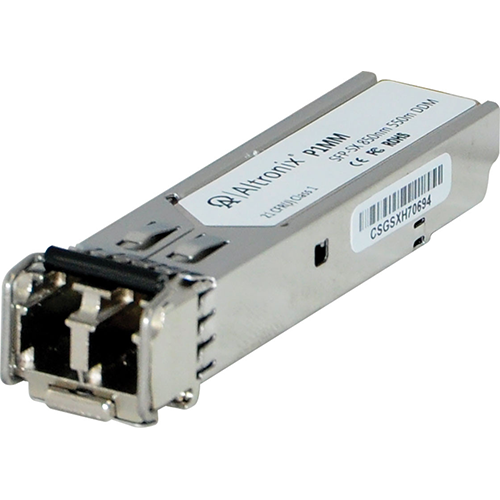

Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver

Altronix P1MM are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up to 550m. It is recommended to pair (two per fiber link) remote and headend with same SFP module.

• Features:
  • IEEE 802.3a compliant.
  • Spans distances up to 550m (1804 ft.)
  • Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).
• Standards:
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant.
  • Compliant with MSA SFP Specification.
• Connector Type:
  • LC Duplex.
• Data Rate:
  • Up to 1.25Gbps.
• Wave:
  • 850nm VCESL Laser Transmitter.
• TX power (dBm):
  • -18 ~ 0
• RX Sensitivity (dBm):
  • -8 ~ -4
• Distance:
  • 550m with 50/125 micron MMF.
