Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit

Item #:P1AB2K
You must be logged in to order this item.
Log in here
P1AB2K

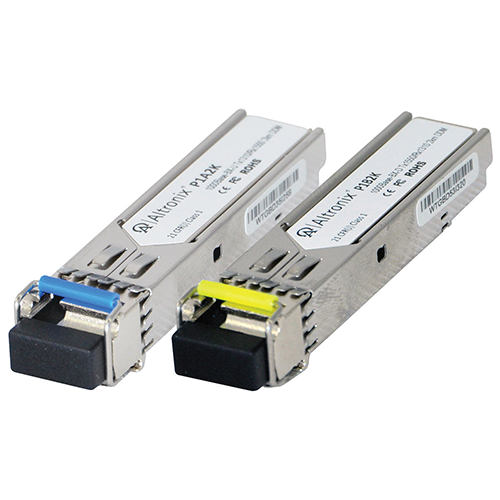

Altronix P1AB2K kit includes 1 P1A2K and 1 P1B2K hot-pluggable Bi-Directional single strand SFP fiber transceiver modules and are readily usable with all Altronix NetWay Spectrum fiber optic equipment for 1G transmission rates at distances up to 2km. For use in new or retrofit applications where single strand fiber exists.
Key Features
  • Spans distances up to 2km (6561 ft.)
  • Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).
Standards
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant.
  • Compliant with MSA SFP Specification.
Connector Type
  • Hot-Pluggable SFP Footprint Simplex SC/LC Connector Interface.
Data Rate
  • Up to 1.25Gbps.
Wave
  • Bi-Directional (BIDI).
P1A2K
  • TX power (dBm): 1550nm
  • RX Sensitivity (dBm): 1310nm
P1B2K
  • TX power (dBm): 1310nm
  • RX Sensitivity (dBm): 1550nm
Distance
  • 2km with 9/125 micron SMF.
