Plug-in Power Supply, 14VDC @ 1.7A

Item #:P1417
You must be logged in to order this item.
Log in here
Elk Products P1417

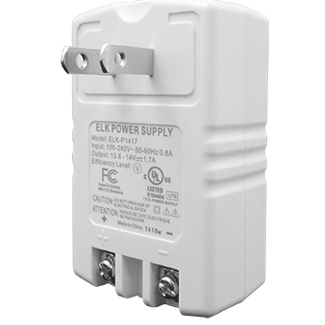

The ELK-P1417 14VDC plug in power supply features built-in overload reset and screw terminals for connections. It is ideal for alarm, access control, and CCTV applications requiring up to 1.7 amps. A receptacle mounting bracket is included.
  • Output Voltage Range: 13.8 to 14 Volts DC.
  • Continuous Output Current: 1.7 Amps DC
  • UL Listed for US and Canada
  • Positive and Negative screw terminals on DC output
  • Input Voltage Range: 100 - 240 Volts AC, 50/60Hz
  • Input Current: 0.8 Amps AC
  • Compliant with Energy Star EISA Level V
  • RoHS compliant (RoHS2-2011/65/EU)
  • Size w/ mounting bracket: 3.07" x 2.83" x 1.5" (78 x 72 x 38 mm)
  • AC input plug style: NEMA 1-15P (non-polarized)
