Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board

Item #:OLS180
You must be logged in to order this item.
Log in here
OLS180

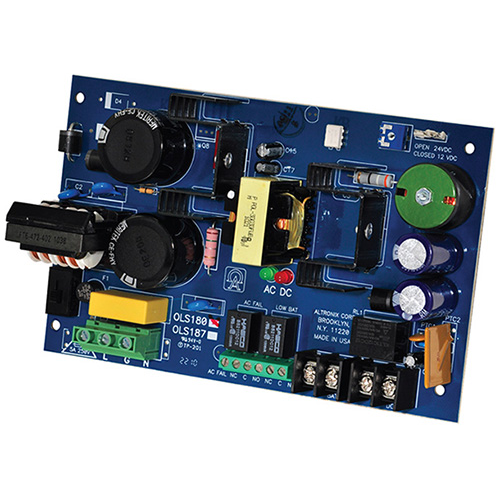

OLS180 power supply/charger converts a 115VAC, 50/60Hz input into a 12VDC or 24VDC output @ 6A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.

Features:

  • Power ON/OFF switch.
  • Includes battery leads.
Specifications:
  • Input:
    • 115VAC, 50/60Hz, 1.9A.
    Output:
    • 12VDC or 24VDC selectable output.
    • 6A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
    Battery Backup:
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    Supervision:
    • AC fail supervision (form C contacts).
    • Low battery supervision (form C contacts).
    Visual Indicators:
    • AC input and DC output LED indicators.
    Electrical:
    • Temperature:
      • Operating: 0° C to 49° C (32° F to 120° F).
      • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VDC: 74 BTU/Hr.
    • System AC input VA requirement: 218.5VA.
