Power Supply Charger, Single Output, 12/24VDC @ 4A, 115VAC, Board

Item #:OLS120
You must be logged in to order this item.
Log in here

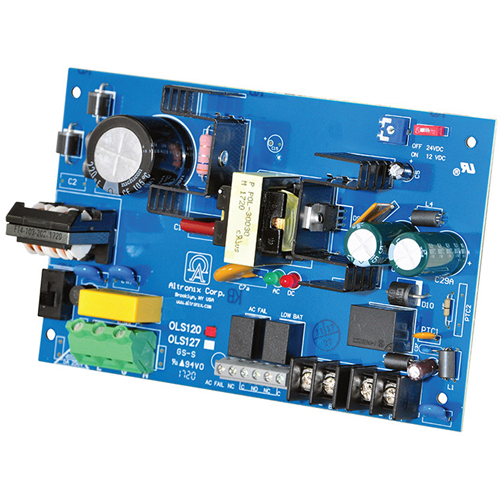

OLS120

OLS120 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input into a 12VDC or 24VDC output @ 4A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.

Features:

  • Power ON/OFF switch.
  • Includes battery leads.

Specifications:
Input:
  • Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
Output:
  • 12VDC or 24VDC selectable output.
  • 4A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
Supervision:
  • AC fail supervision (form C contacts).
  • Low battery supervision (form C contacts).
Visual Indicators:
  • AC input and DC output LED indicators.
Electrical:
  • Operating temperature: 0° C to 55° C (32° F to 131° F).
  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.):
      • 12VDC: 25 BTU/Hr.
      • 24VDC: 49 BTU/Hr.
  • System AC input VA requirement:
    • 115VAC: 109.25VA.
    • 230VAC: 138VA.

New Catalog

Brand
ALTRONIX
OLS120
Power Supply Charger, Single Output, 12/24VDC @ 4A, 115VAC, Board
