Dual 1G Fiber SFP, 4 port 10/100/1000 PoE/PoE+

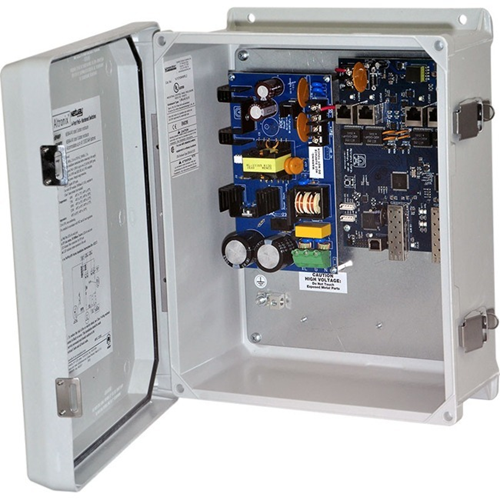

Altronix NetWaySP4WP Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.

• Input:
  • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
  • Fusing: 5A/250V.
• Power Output:
  • Maximum Power Four (4) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports.
  • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • 120W total power.
  • Integral surge protection.
• Fiber Port:
  • Two (2) Gigabit SFP ports.
• Ethernet
  • Four (4) 10/100/1000 Mbps ports.
  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair CAT5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
• Battery Backup:
  • (not included)
  • Type: Sealed lead acid or gel type.
  • Failover: Upon AC loss, instantaneous.
• LEDs
  • Individual PoE On LEDs for each port.
  • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ALOS LED indicates fiber connection for SFP port.
  • Heartbeat LED indicates proper operation of the unit.
• LINQ Technology
  • Remote network management allows for camera/device reset and monitoring.
  • Provides local and/or remote access to critical information via LAN/WAN.
  • Email and trap message notifications report real-time diagnostics.
  • Event log tracks history.
