4-port Fiber Optic Transceivers with Built-In Power Supplies

Item #:NETWAYSP4P2
You must be logged in to order this item.
Log in here
NETWAYSP4P2

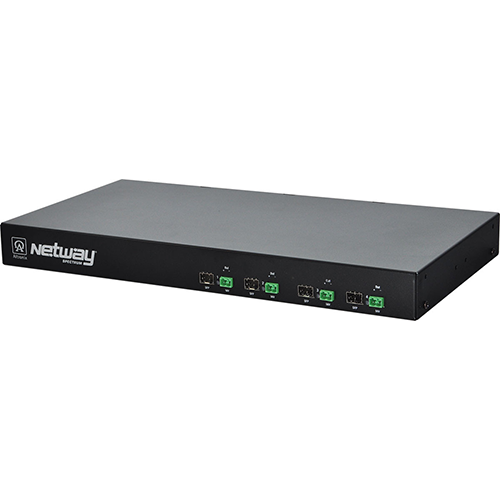

Altronix NetWaySP4P2 Fiber Optic Transceivers provide four (4) 1Gb SFP ports and four (4) power - limited ports for up to 60W per port to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches. NetWaySP4P2 can be used for standard fiber cable applications as well.

  • Input: 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2A.
  • Power:
    • Four (4) 56VDC power-limited outputs up to 60W max. full power per port.
    • Total power: 240W.
    • Short circuit protection.
  • Fiber Port:
    • Four (4) Gigabit SFP ports.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet
    • Four (4) ports to swtich.
    • Wire type: 4-pair CAT5e and higher.
    • Connectivity: RJ45, auto-crossover.
    • Speed: 10/100/1000Mbps.
    • Distance: up to 100m.
  • Battery Backup
    • Built-in battery charger (optional rack mount battery enclosure - RE2).
    • Automatic switchover to stand-by battery when AC fails.
