Single 1G Fiber SFP, 3 port 10/100

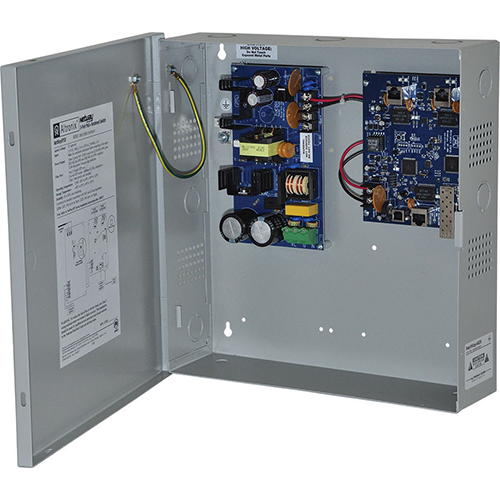

Altronix NetWaySP3X Indoor Ethernet over Fiber PoE+ Hardened Switches provide a 1Gb SFP port and three (3) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere.

• Input: 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
• Power Output
  • Three (3) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
  • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • 120W total power.
  • Integral surge protection.
• Fiber Port
  • One (1) Gigabit SFP port.
  • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
• Ethernet
  • Three (3) 10/100/1000 Mbps ports.
  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair Cat-5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100/1000Mbps, half/full duplex, auto negotiation
• Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
• Indicators (LED)
  • Individual PoE On LEDs for each port.
  • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ALOS LED indicates fiber connection for SFP port.
  • Heartbeat LED indicates proper operation of the unit.
• LINQ Technology
  • Remote network management allows for camera/device reset and monitoring.
  • Provides local and/or remote access to critical information via LAN/WAN.
  • Email and Windows Dashboard Alert notifications report real-time diagnostics.
  • Event log tracks history.
