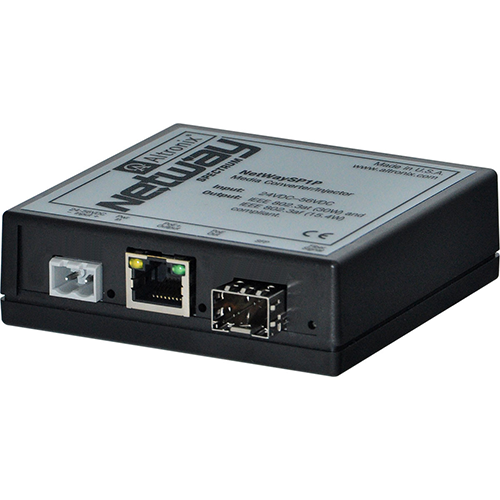

Powered Media Converter/Injector

Item #:NETWAYSP1P
You must be logged in to order this item.
Log in here
NETWAYSP1P

  • Input
    • 24VDC @ 1.5A, 56VDC @ 0.75A (30W / PoE+).
    • 24VDC @ 1.0A, 56VDC @ 0.5A (15W / PoE).
  • Output
    • Unit provides PoE / PoE+, up to 30W max.
    • IEEE 802.3af and IEEE 802.3at compliant.
    • Short circuit protection.
  • Fiber Port
    • One (1) 1Gb SFP port.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet
    • IEEE 802.3at (30W) compliant.
    • Wire type: 4-pair CAT5e and higher.
    • Connectivity: RJ45, auto-crossover.
    • Speed: 10/100/1000Mbps.
    • Distance: up to 100m.
  • LED Indicators:
    • PoE Green LED: Indicates PoE present (unit is powered on).
    • Fiber Signal Green LED: Indicates SFP connection.
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices.
    • Compact insulated housing.
