Home  >  Networking  >  Network Switches  > Single 1G Fiber SFP, 4 port 10/100 PoE/PoE+ configurable for 2x 60W Hi-PoE

Single 1G Fiber SFP, 4 port 10/100 PoE/PoE+ configurable for 2x 60W Hi-PoE

Item #:NETWAY4ELWPX
You must be logged in to order this item.
Log in here
NETWAY4ELWPX

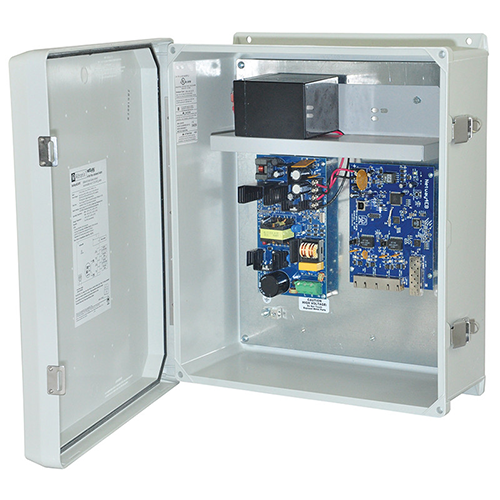

Altronix NetWay4ELWPX Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere. These units are designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
Input
  • 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Power Output
  • Four (4) ports PoE+ (30W) or one (1) Hi-PoE (60W) port.
  • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • 75W total power.
  • Integral surge protection.
Fiber Port
  • One (1) Gigabit SFP port.
  • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet Ports
  • Four (4) 10/100 Mbps or two (2) 10/100/1000 Mbps ports.
  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair Cat-5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
Battery Backup
  • Built-in charger for 12V LiFePO4 (Lithium Iron Phosphate) battery.
  • Automatic switch over to stand-by battery when AC fails.
Indicators (LED)
  • Individual PoE On LEDs for each port.
  • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ALOS LED indicates fiber connection for SFP port.
  • Heartbeat LED indicates proper operation of the unit.
LINQ Technology
  • Remote network management allows for camera/device reset and monitoring.
  • Provides local and/or remote access to critical information via LAN/WAN.
  • Email and Windows Dashboard Alert notifications report real-time diagnostics.
  • Event log tracks history.

Networking Network Switches

PoE
Yes
Brand
Altronix
NETWAY4ELWPX
Single 1G Fiber SFP, 4 port 10/100 PoE/PoE+ configurable for 2x 60W Hi-PoE
