Combo Speaker Locator and 1-Gang Mud Ring (12 Pack)

Item #:MR-1-12
You must be logged in to order this item.
Log in here
MR-1-12

  • Combination Speaker Locator & Single Gang Mounting Ring
  • The MR-1 is a combination speaker locator  mud ring. It utilizes a unique group of features making it very useful & cost effective.
  • Made from ABS flame retardant plastic, UL 94V-0 compliant

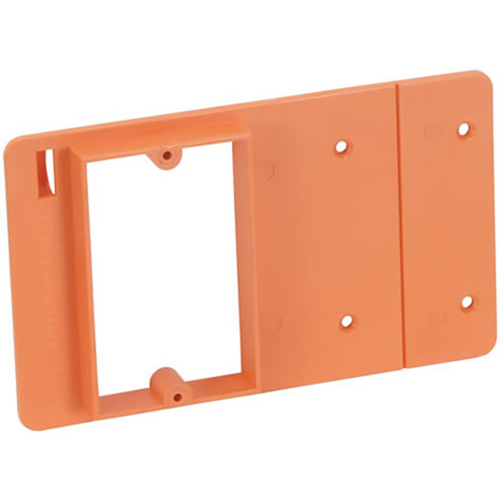

  • See diagram - Notice the score line between the two sets of mounting holes.
  • When used as a speaker locator, fastened to a truss, ceiling joist or wall stud (member), it should be positioned such that the score is aligned with the edge of the member so it may easily snapped off at such time a speaker is to be mounted.
  • After the sheetrock, but before a speaker is mounted, the small opening is covered by the MR-CVR. The MR-CVR has the aesthetically acceptable look of an electrical box cover waiting for a light or ceiling fixture.
  • Once the mud-rings are snapped off for speaker installations, the remaining piece should be salvaged and used for volume control or keypad locations.
  • Sold and shipped individually
