RS-232 to Ethernet Gateway LAN/WAN Gateway

Item #:MD-N32
You must be logged in to order this item.
Log in here
MD-N32

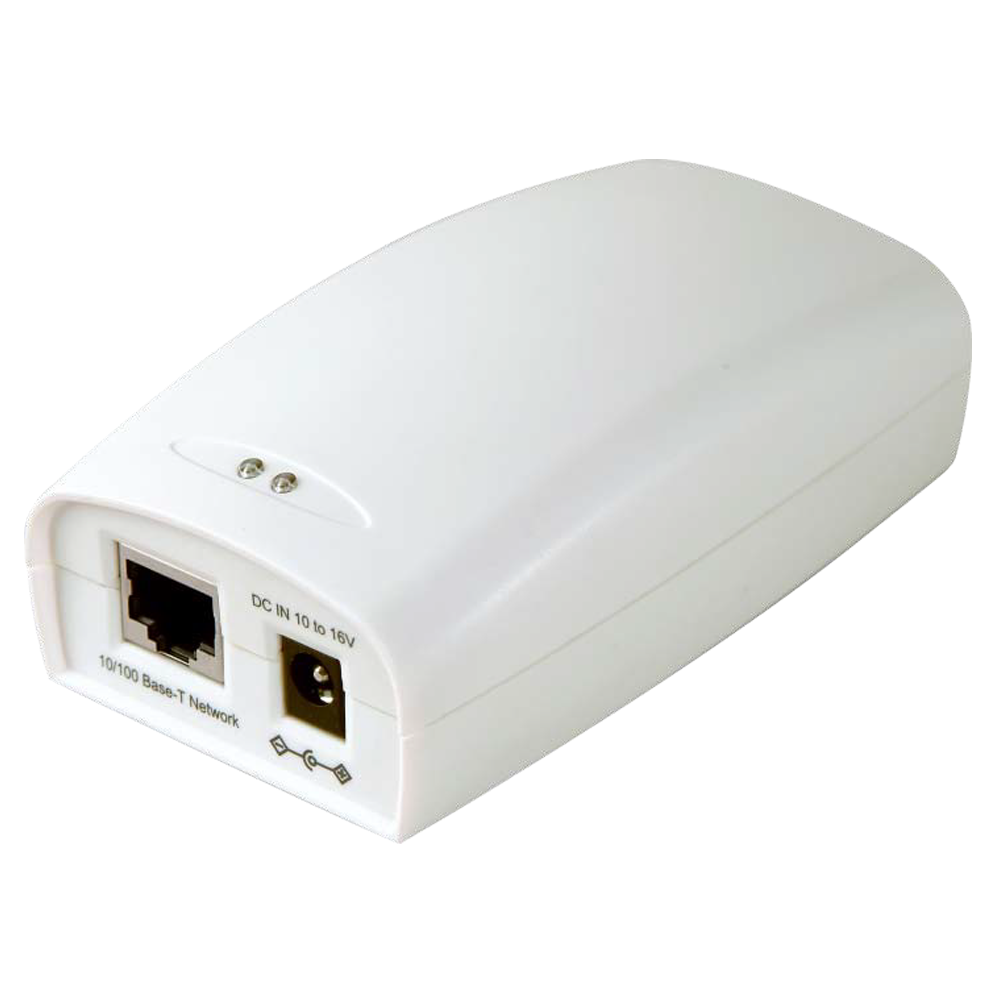

Rosslares MD-N32 is a powerful, high performance gateway designed to send and receive information between varied pc-managed access control system products via a LAN or WAN, thus saving on serial cabling installation. Integrally compatible with the AxTraxNG software, the MD-N32 gateway packs advanced features such as ping, search on LAN, variable baud rate, data type, MAC/IP address, and communication parameters. One unit can handle multi-door sub-networks (RS-485/232) connected via TCP/IP to the AxTraxNG server.
The MD-N32 gateway delivers simple, reliable, and cost-effective network connectivity for multiple serial devices.

Features

  • Universal RS-232 to TCP/IP gateway for general use
  • Supports DHCP dynamic IP addressing
  • +12 VDC jack power input connector
  • RS-232 speed from 1200 bps to 230.4 Kbps
  • Bi-directional conversion of RS-232 to TCP/IP
  • Powered by external 12 V wall adapter type power supply

Access Control Miscellaneous

Brand
Rosslare
MD-N32
RS-232 to Ethernet Gateway LAN/WAN Gateway
