Serial to Leviton VRCOP Z-Wave Interface

Item #:M1XSLZW
You must be logged in to order this item.
Log in here

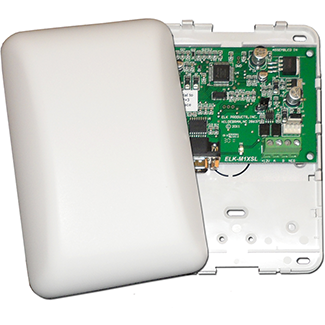

Elk M1XSLZW
The M1XSLZW is a specialized Elk-M1 serial expander for connecting an M1 Control to Z-Wave enabled devices through a Leviton VRC0P+3 Z-Wave Serial Interface. Z-Wave is a wireless, low power, "mesh" network technology widely used for automating devices such as: Lights, Thermostats, Electronic Locks, etc. Z-Wave empowers devices to be remotely controlled from across the room or across the world with benefits such as energy savings, convenience, and comfort.
The VRC0P+3 is known as a Z-Wave Secondary Controller. It must be included as a permanent member of the Z-Wave network as its job is to maintain contact with all Z-Wave devices. It communicates via RS232 to the M1XSLZW which translates the protocol into the M1 control. This allows commands to be sent and received on the Z-Wave network.
  • Activity/Status LED (Orange)
  • Auto-Reset Hardware Watchdog Circuit
  • Addressable (1-7) TYPE 5 Databus ID
  • Connection to VRC0P+3: DB9M 9 Pin Port
  • Connection to M1: Elevator Screw Terminals (4)
  • Operating Voltage: 12 Volts D.C.
  • Current Draw: 31mA
  • Housing: 4.25" x 6.375" x 2.125"
  • Circuit Board: 2.25" x 3.95"
