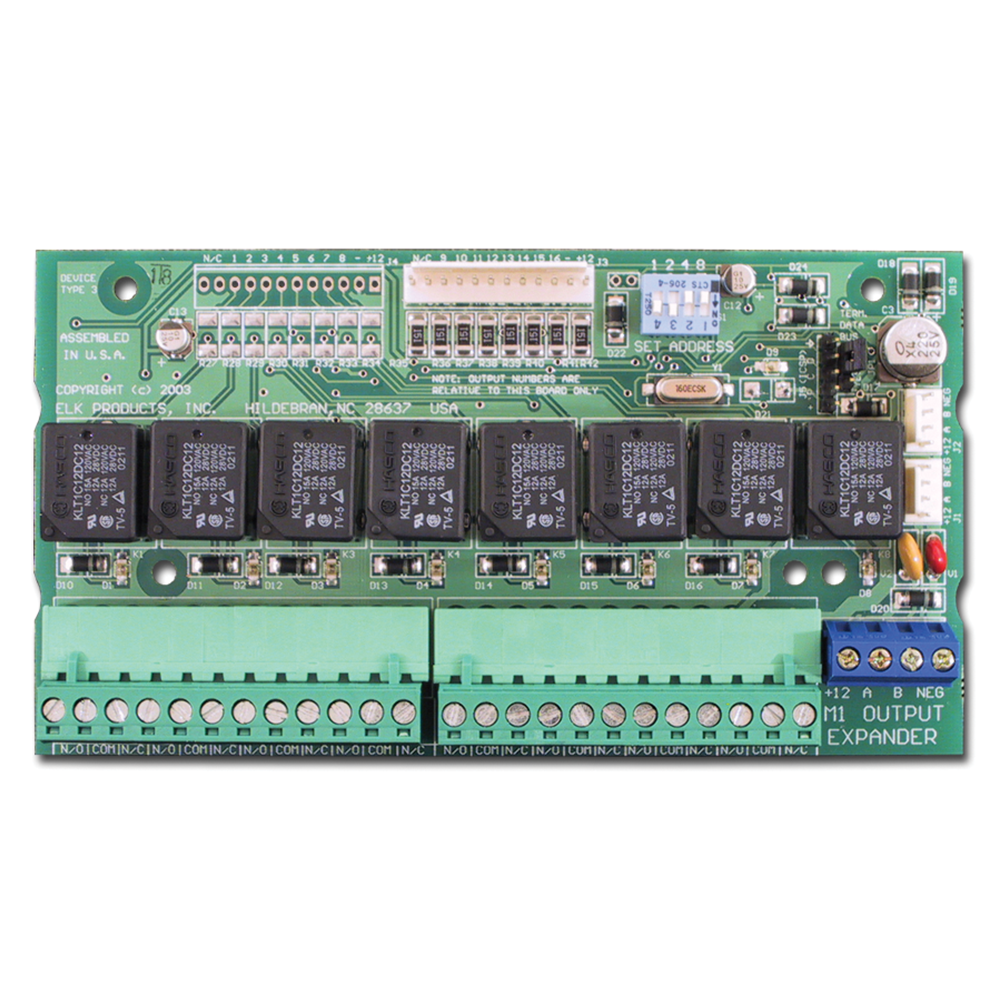

16 Output Expander, 8 Voltage & 8 Relays

Item #:M1XOVR
You must be logged in to order this item.
Log in here
Elk M1XOVR

Adds 16 outputs (8 voltage, 8 relays) to M1 Gold or M1EZ8 Controls. Voltages can be used to trigger low current devices (50 mA max. each). Relays are SPDT rated for 7A @ 30 VDC, 10A @ 125 VAC. Operates from 4-wire data bus. Up to 12 output expanders may be used for a total of 208 outputs. Option: Convert 8 voltage outputs to relays using M1RB Relay Board.
Includes:

  • Output Expander - 8 Relays/8 Voltage Outputs
  • ELK-SWG Circuit Board Mounting Glides 2/pack
  • Relay Adapter, 12 Conductor Cable Assembly
  • Instructions
Features:
  • 8 Voltage Outputs
  • 8 Single-Pole, Double-Pole Relay Outputs
  • Operates on the 4-Wire Data Bus
  • DIP Switch Address Settings
  • Flash Memory for Firmware Updating
  • One (1) - Twelve (12) Conductor "Flying Lead" Wire Harness
  • Voltage Outputs may be converted to Relays using M1RB Relay Boards
  • Status LED with Diagnostic Display
  • Mounts in Enclosure using ELK-SWG Glides, SWP or SWP3 Structured Wire Plates, or Double Sided Foam Tape
Specifications:
  • Voltage Outputs: 12 VDC @ 50 mA each
  • Relay Outputs: SPDT rated for 7 Amps @ 28VDC, 10 Amps @ 125 VAC
  • Wire Harness Length: 12"
  • Operating Power Range: 9 to 14 VDC
  • Current Draw: 65 mA Nom., 330 mA Max.
  • Size: 6" x 3.25" x .75" H
