LCD Keypad For M1 Controls

Item #:M1KP
You must be logged in to order this item.
Log in here

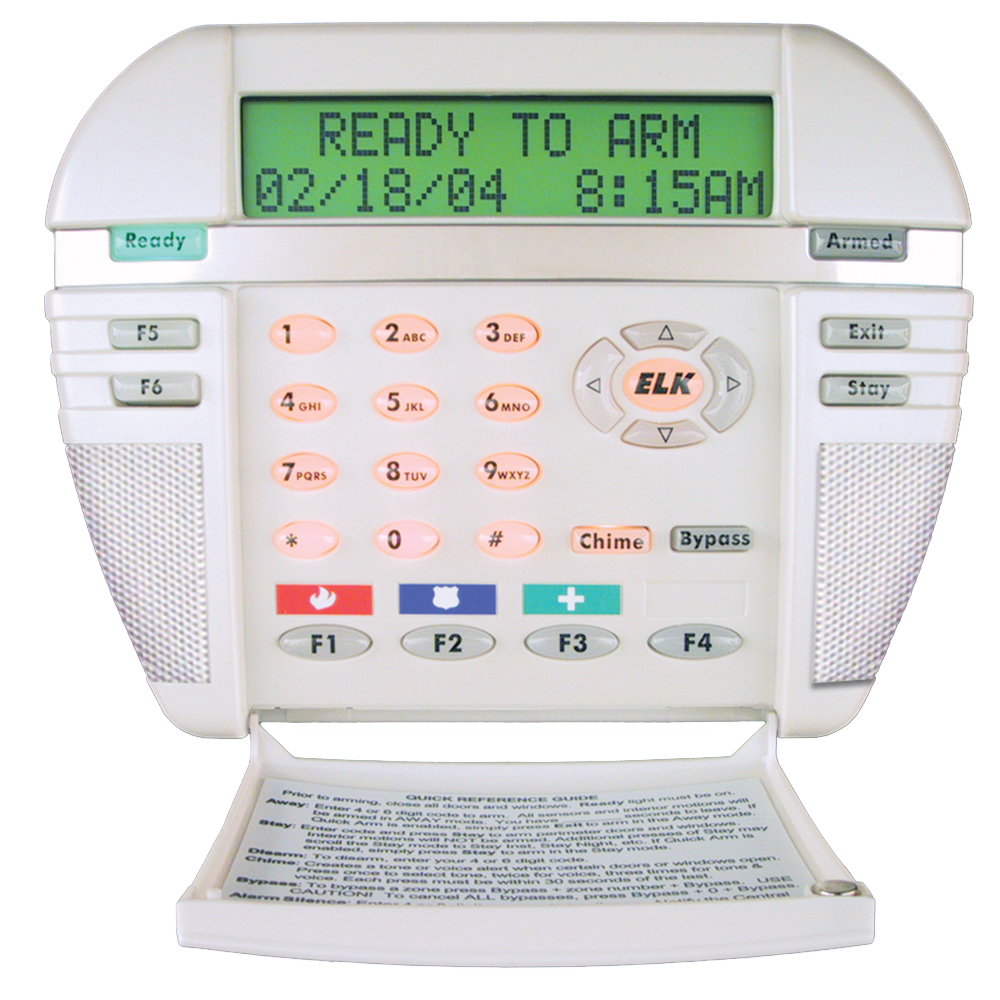

Elk Products M1KP

The ELK-M1KP is an addressable LCD Keypad for the M1 Cross Platform Controls. It features a 32 character back lighted display with adjustable intensity and extra large character fonts for ease of readability. The M1KP includes a plug-in connector on the back for adding an internal proximity reader (ELK-M1PR) or for interfacing to virtually any external 26 bit Wiegand compatible proximity reader. Proximity cards/fobs can be used for touchless arming, disarming, door strike control, etc.
Includes:

  • LCD Keypad with Green Display
  • 1 each Multicolor & Quick Reference Labels
  • 4 #6 Flat Head Phillips Sheet Metal Screw
  • 1 2200 Ohm Resistor
  • 5 Gel Filled B-Connector
  • 1 Mini Jumper
  • 6-wire Flying Lead Cable Assembly
  • Instructions
Features:
  • Large, Easy to Read Characters
  • Back lighted with Adjustable Intensity
  • Removable Hinged Door
  • Unique Menu Navigation/Direction Keys
  • Operates on 4-Wires (M1 Data Bus)
  • Built-in Speaker with Adjustable Beep Tone and Volume
  • Accepts Plug-in Proximity Card Reader (Optional)
  • Input for 1 Supervised Zone
  • One Programmable Voltage Output
  • Exit, Stay, Chime, and Bypass Keys
Specifications:
  • Input Connection: 6 Pin Plug-in "Flying Lead" Connector Included
  • Proximity Connection: 5 Pin Plug-in "Flying Lead" Connector (optional ELK-WO35A required for external proximity reader)
  • Color: Glacier White
  • Operating Voltage: 13.8 VDC
  • Current Draw: 40 - 50 mA Idle (low back light level, sounder silent)
  • 160 mA Fully Active (max. back light & sounder active)
  • Size: 6.875" W x 5.25" H x 1.375" D
