Single Door Access Module

Item #:M1KAM
You must be logged in to order this item.
Log in here

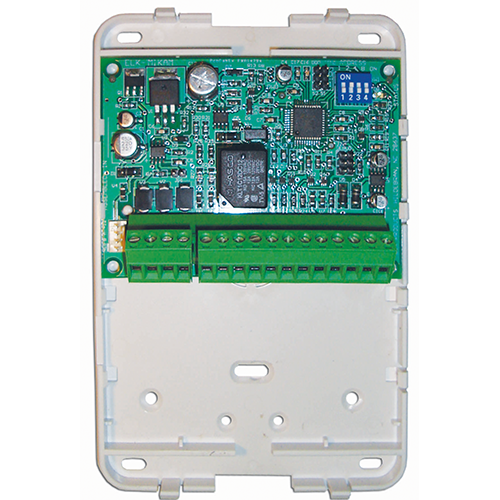

Elk M1KAM

  • Input for a 26 bit Wiegand Reader, such as ELK-106055
  • Input for a Dallas "One-Wire" iButton Reader, such as ELK-MA110
  • Heavy Duty Form "C" Relay Contacts for Switching Door Strike Power
  • Low Current (50mA) Switched Negative (pull to ground) Output for "Door Held Open" Alarm
  • Low Current (10mA) Switched Negative (pull to ground) Output for "System Ready To Arm" indication
  • Low Current (10mA) Switched Negative (pull to ground) Output for "System Armed" indication
  • Supervised Input for RTE (Request To Exit) Button/Device
  • Supervised Input for Door Status Sensor
  • Installs in place of an M1 Keypad and operates from the RS-485 4-Wire Keypad Data Bus
  • Four selectable Time settings for "Request to Exit" and "Door Held Open"
  • Hardware Watchdog Circuit

Access Control Controls/Panels

Brand
Elk Products
Elk M1KAM
Single Door Access Module
