Main Serial Interface Port for EZ8

Item #:M1EZ8MSI
You must be logged in to order this item.
Log in here

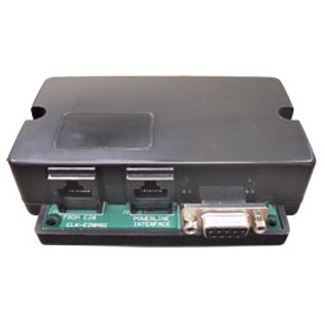

ELK-M1EZ8MSI

The ELK-M1EZ8MSI Main Serial Port Interface allows direct RS-232 Serial Communications to an M1EZ8 Control for Upload/Download programming, and for interfacing with other Computer type devices. Also required when adding the M1XEP Ethernet Port to an M1EZ8 Control. The speed of this port is software selectable from 300 to 115,200 baud.
Includes:

  • M1EZ8 Main Serial Interface
  • 4 pieces of Double Sided Tape
  • Plastic Housing
  • CAT5E Patch Cable Assembly
  • Instructions
Features:
  • Adds A High Speed RS-232 Serial Port To Any M1EZ8 Control
  • Allows Computers And Other Serial Devices To Communicate With The M1EZ8 Control
  • Self-Powered From The Control
  • Modular Connectors For Long Term Reliability
  • Powerline Lighting Pass-through Connector For PSC-05 (or equiv.) Interface
Specifications:
  • Gold Plated RJ45 8-Wire Modular Connectors
  • DB9F Female 9-Pin RS-232 Serial Connector
  • Operating Voltage: 12 Volts D.C.
  • Current Draw: Less Than 5mA
  • Housing Dimensions: 4.375 in. x 3.0 in. x 1.125 in.
  • Circuit Board Dimensions: 3.5 in. x 2.75 in.
