EZ8 Board Only

Item #:M1EZ8CB
You must be logged in to order this item.
Log in here

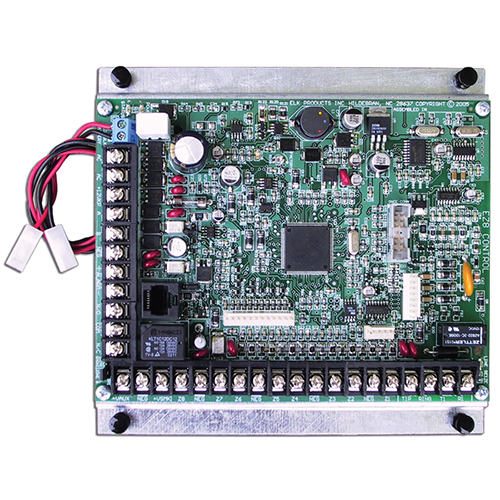

Elk M1EZ8CB
M1EZ8 offers an economical solution for installations not requiring the voice and telephone remote control capability of the M1 Gold. Unlike controls that only offer basic security capability, M1EZ8 is a powerful, rock solid security control with the most imaginative automation functionality available. Built on the same software architecture as the M1 Gold, the possibilities for expansion, networking, and option for programming and control over the internet make the M1EZ8 an exceptional value.
M1EZ8 offers the flexibility to integrate industry standard systems and components for easy upgrades and system expansion. Interfaces well with lighting controls, HVAC communicating thermostats, touch screens, etc. Optional Ethernet port controls M1EZ8 and networked systems from a PC browser, anywhere. Does not require a dedicated, "24/7" server.
  • Large zone capacity: 8 on-board zones expandable to 200
  • Wireless capability: Up to 144 zones
  • Two-way Listen-in capability via Central Station
  • Time/Date stamped 512 event history log
  • Menu driven, full text keypad programming - no manual required!
  • 12 On-board Outputs: 1 siren driver/voltage, 1 form "C" relay and 10 low current (10mA) outputs
  • Can be partitioned into 8 separate areas and account numbers
  • User Codes: 199 (4 or 6 digit) with assignable authority levels
  • Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation
  • Flash Memory - Allows field updates to firmware electronically
  • Supports 4-wire (any zone) and 2-wire (zone 8) smoke detectors
  • Includes fire alarm verification routine
  • Hardware "watchdog" and nonvolatile EEPROM memory
  • Telephone Line Fault with alarm output
