M1 Data Bus Hub For Retrofit

Item #:M1DBHR
You must be logged in to order this item.
Log in here

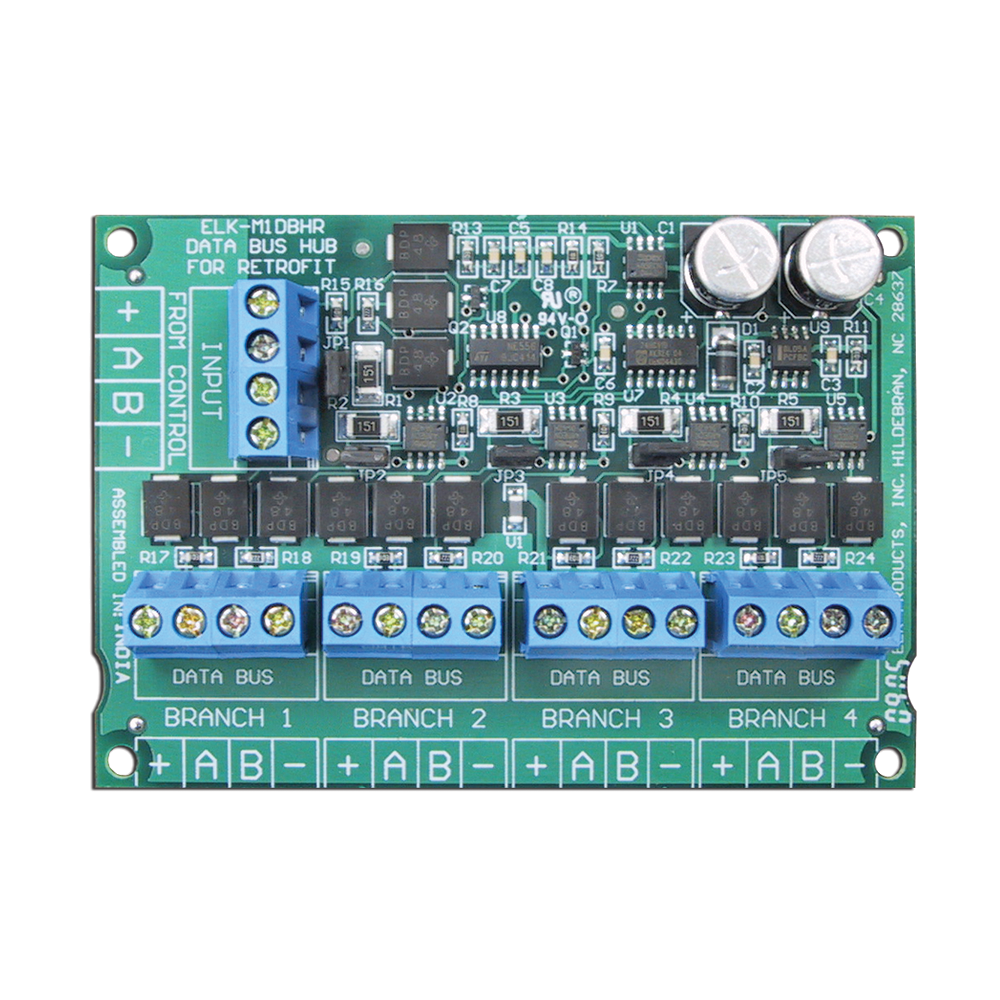

Elk M1DBHR

An "active" RS-485 data bus hub designed for jobs where an M1Gold or M1EZ8 Control is retrofitting an older panel that has multiple homerun 4 conductor keypad/data wires. It splits the main 485 data bus into 4 managed 485 branches. Each branch can have 2 parallel home run cables for a total of 8 home runs. The end of each cable is EOL terminated to insure proper operation and supervision.
Includes:

  • ELK-M1DBHR Data Bus Hub
  • ELK-SWG Circuit Board Mounting Glides
  • Instructions
Features:
  • Splits The Controls' RS-485 Data Bus Output Into 4 Managed Branches
  • Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
  • EOL Termination Of Each Branch Insures Proper Operation And Supervision
  • Works With Std. 4 Conductor Home Run Wire
  • An Additional Unit May Be Connected In Parallel To The Control For Expanding Total Capacity
  • Includes Mounting Rails for ELK-SWB Boxes
Specifications:
  • Inputs: Elevator Screw Terminals, 4 Position
  • Output: Elevator Screw Terminals, 4 Position
  • Circuit Board Dimensions: 4.9 in. x 2.75 in.

New Catalog

Brand
ELK PRODUCTS INC
Elk M1DBHR
M1 Data Bus Hub For Retrofit
