Data Bus Hub (For proper termination of multiple bus devices)

Item #:M1DBH
You must be logged in to order this item.
Log in here
M1DBH

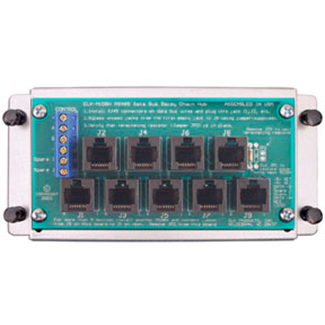

For easy connection of expanders & keypads. The M1DBH accepts up to 9, RJ45 equipped CAT5 or CAT6 cables, and series connects the data A & B lines so the data bus may be terminated properly. Two or more units may be interconnected if more than 9 data lines are required.
  • Designed For Multiple Home Run Cables
  • Internally Connects Data A & B Lines From Previous Device In to Next Device Out
  • Provides up to Nine (9) Data Bus Connections
  • Multiple Hubs May be Connected for Expansion
  • EOL Bus Termination Can Be Done On-Board, RJ45 Terminating Resistor Plug Included
  • Mounting Plate for Structured Wire Boxes
  • Input Connections: Elevator Screw Terminals
  • Output Connections: RJ 45 8-Pin Jacks
  • Mounting Plate Dimensions: 6.5" x 3" x .5"
  • Circuit Board Dimensions: 5" x 2.5"
