IP Addressable Flush Mount Door Stations for the IX Series

Item #:IX-DF
You must be logged in to order this item.
Log in here

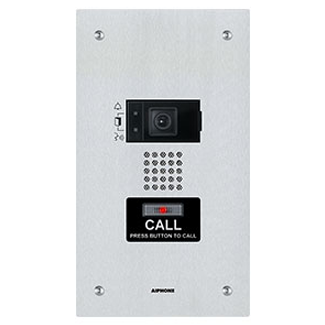

Aiphone IX-DF
The IX-DF is an IP addressable stainless steel, flush mount video door station. It connects to the network using CAT-5e/6 cable. The door stations have a built-in dry contact for door release (24V AC/DC, 500mA). The IX-DF is equipped with a fixed camera, which can be vertically adjusted to 3 positions. The IX-DF is ONVIF Profile S compliant. The door stations can call up to 20 different master stations (IX-MV). An additional 20 master stations can be called using the contact input. The speaker and microphone allow for two-way communication with a master station. The units are 802.3af PoE compliant. Flush mount with the supplied back box or surface mount with the SBX-ISDVF.
  • Fixed color video camera
  • ONVIF Profile S compliant
  • Weather resistant
  • Camera vertical adjustment +15º, 0º, or -8º
  • Normally Open dry contact for door release (24V AC/DC, 500mA)
  • For indoor or outdoor use
  • Stainless Steel
  • Connects using CAT-5e/6 cable
  • 802.3af PoE compliant
