Ethernet to RS232 Serial Bridge

Item #:IP232
You must be logged in to order this item.
Log in here

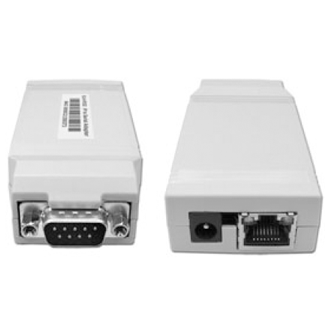

ELK-IP232
The ELK-IP232 is an Ethernet to RS-232 Serial Port Bridge. It may be used to connect any standard serial communications device such as a PC, an audio/video distribution system, etc., to an Ethernet network. It allows bi-directional communication between the two. It operates as both a network server and a client, which means it is able to both initiate and accept network connections. Once a network connection is made, the remote networked device or computer is virtually connected to the serial device on the other side of the Bridge. Both the network device and the serial device can send and receive messages to and from each other. Up to twelve network devices may be connected simultaneously. Data sent from any one of them is bridged to the serial port. Data received on the serial side is transmitted to all connected network devices. The bridge can send and receive both UDP and TCP packets.
  • Supports both UDP and TCP protocols
  • Allows up to twelve (12) simultaneous TCP-IP network connections
  • Up to twelve (12) "Rules" may be programmed to make outgoing connections.
  • Outgoing connections may be initiated upon power up or when serial activity is detected. They may remain connected indefinitely or for a set time period.
  • Selectable baud rate from 300 to 115200 baud
  • Supports software handshaking (XON/XOFF) and hardware handshaking (RTS/CTS)
  • Multiple Bridges can be used on the same network
  • Can be updated in the field with new firmware using the Configuration Utility
  • Integrated 802.3 compliant 10/100 Mbit network interface
  • RS232, DB9M 9-pin serial port connection
  • Connects to the M1 RS-232 Serial port (Port 0).
  • RJ45 8-pin Network Jack
  • 2.1mm barrel type power connector (center positive)
  • LED Indicators for Power, Link, and Data
  • Operating Voltage: 12 Volts D.C. from ELK-P1216 Plug-in Power Supply **
  • Current Draw: approx. 135 mA
  • Dimensions: 3.85. L x 1.7. W x 0.93. D
