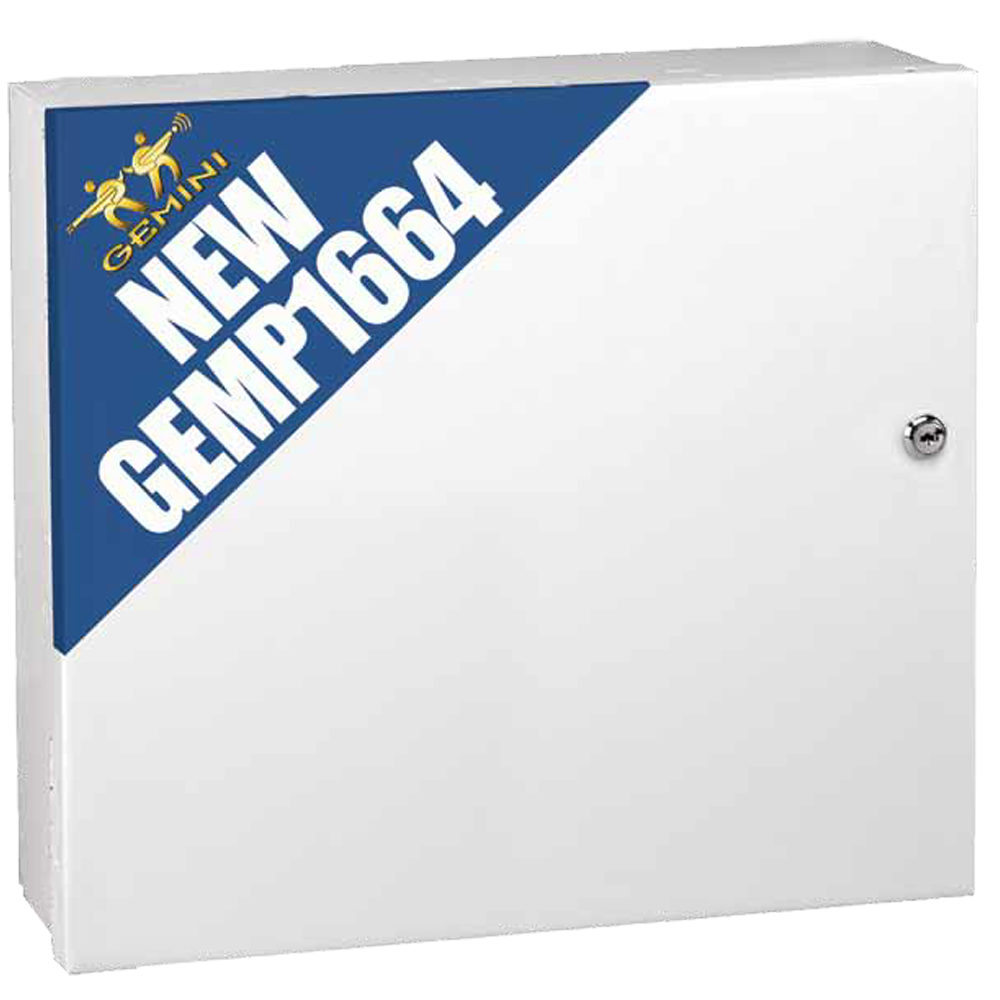

64 Zone, 4 Partition Control Panel in Large H401 Ecnlosure with Lock & Key

The GEM-P1664 Hybrid 8 to 64-Zone Control/Communicator features 8 zones expandable to 64 zones with multiplexing and supports all standard Gemini RP and K-Series Keypads, plus new Gemini DK-Series Door-Style Keypads and new VPS Series talking multifunction keypads, as well as reliable, NAPCO Gemini crystal-control transmitters and receivers, too. Supporting up to 64 user codes and 16 relays, the GEM-P1664 control features easy menu drivenSelf-Programming Plus keypad programming (for all zones), which includes new alpha keypad question-prompts, even for setting test timer, fire zones and exit/entry and follower zones. Additionally, the panel can be remote up/downloaded using easy-to-use NAPCO Quickloader Software.

Features:

• 8 hybrid zones on-board including two 2-wire fire zones in large, locking enclosure (12.5 in. x 14 in. x 3.75 in.)
• With multiplexing, can accommodate up to 64 EOL zones (from alpha keypads or multiplex modules, including the low-cost GEM-EZM4/8 Expansion Module).
• Programmable partitioning for 4 areas
• Up to 64 users
• Uses all the standard Gemini crystal-control wireless
• Uses all the standard Gemini keypads, new DK-Series door-style keypads and multifunction VPS Series talking keypads
• Two money-saving paks with custom alpha door keypad GEMP1664DK1PK; or with multifunction GEMK1VPS keypad with built-in talking voice, PIR and UL siren, GEMP1664VPSPK
