Read 433 MHz Proximity ID fob with 100ft range Wiegand outpu

Item #:FLR-UHF-30
You must be logged in to order this item.
Log in here
FLR-UHF-30

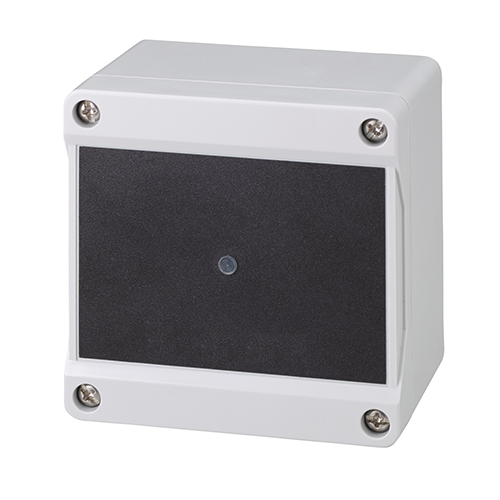

FLR-UHF-30 is an outdoor IP65-rated 433MHz long range receiver designed specifically for ZKAccess long-range transmitters.
With its 100 feet (30M) read-range, FLR-UHF-30 provides users convenient long range authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their credential held in close range to the reader.
FLR-UHF-30 has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).
  • Technology: Long Range
  • Supported media: ZKAccess 2 and 4-Button Long-Range Transmitters (sold separately)
  • Frequency: 433MHz
  • Read Range: Up to 100 feet (30M)
  • Material: Die-casting aluminum shell, Antenna panel with engineering plastics
  • Color: Off-white plastic enclosure with black label
  • Indoor & Outdoor Installation: Electronics sealed in weather resistant epoxy potting
  • Communication Interface: Wiegand (26 bit industry standard and custom Wiegand formats)
  • Power Supply: 12V DC nominal
  • Current: 80 mA typical @ 12V DC
  • IP-rating: 65
  • Operating Temperature: –40° F to 149° F (–40° C to +65° C)
  • Operating Humidity: 15% to 90% relative humidity non-condensing
  • Dimensions (H×W×D): 3.3″ W × 3.3″ H × 1.9″ D (84 mm × 84 mm × 48.3 mm)
  • Certifications: FCC, CE, ICC, UL Standard 294
