Home  >  Networking  >  Network Switches  > 1-ch industrial Ethernet over UTP transmitter

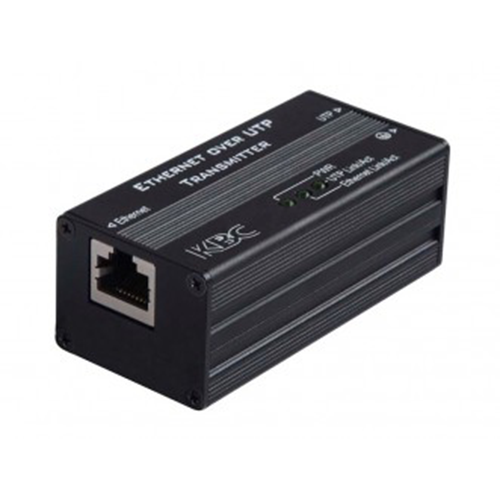

1-ch industrial Ethernet over UTP transmitter

Item #:EERF1-LS1-T-MN-B
You must be logged in to order this item.
Log in here
EERF1-LS1-T-MN-B

EoU/PoW/PoE+, (1) fixed Ethernet port, 10/100Mbps auto-sensing, 30W end-span 802.3af/at PoE+. (1) fixed coax port, EoU/PoW, powered from EERF series receiver

  • 802.3af/802.3at compliant
  • Power over Wire
  • UTP data rate >40Mbps (300m)
  • Based on cable quality ,cable pairs used (1,2 or 4 pairs) and voltage applied to cable (48~57VDC) from headend , PoE and PoE+ are supported by PoW up to 400m.
  • Powered by PoW from EERF16-G3-R-RX-B , EERF8-G3-R-RX-B, EERF4-DN1-R-WN-B or EERF1-LS1-R-MN-B headend
  • Complete protection design including surge protection, lighting protection
  • Unique PoW transmission protection design together with 1,4,8 or 16 channels receiver headend

Networking Network Switches

PoE
Yes
Brand
KBC
EERF1-LS1-T-MN-B
1-ch industrial Ethernet over UTP transmitter
