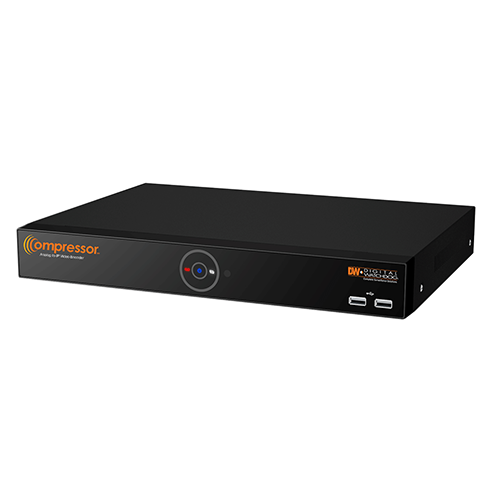

16-Channel HD and Legacy Analog to IP Signal Encoder

Item #:DW-ENHD16
You must be logged in to order this item.
Log in here
DW-ENHD16
The Compressor analog to IP signal encoder converts up to 16 HD-Analog, HD-TVI and CVBS signals into IP, with live local display at real-time 1080p and streaming at a total of 240fps. The Compressor is fully integrated with DW Spectrum IPVMS and is an affordable solution for applications with both analog and IP cameras.
  • The most cost-effective path to IP
  • Universal HD over Coax® technology with HD-Analog, HD-TV and all legacy analog signal support
  • Connect your analog cameras to DW Spectrum® IPVMS (ONVIF approved CMS integration coming soon)
  • Convert up to 16 analog cameras to 2.1MP/1080p IP video signals at 240fps
  • Real-time 480fps 2.1MP/1080p, 720p and 960H resolution at local monitoring output
  • Simultaneous streaming
  • Record and playback with DW Spectrum IPVMS. (Requires licenses per channel to record)
    • DW Spectrum® IPVMS licenses*: DW-SPCP16LSC016 (16 channel), DW-SPCPLSC04LSC004 (4 channel). Licenses sold separately
  • Motion detection
  • Support two-way audio (4 input, 1 output)
  • 1x RS-485 Interface for PTZ control
  • Search and playback from DW Spectrum® IPVMS
  • Frame rate and bandwidth control
  • 4 alarm input, 1 alarm output
  • Event notifications via e-mail with image
  • ONVIF conformant, Profile S (coming soon)
  • DW-EN19RE 19" rack mount ears included

New Catalog

Brand
DIGITAL WATCHDOG
DW-ENHD16
16-Channel HD and Legacy Analog to IP Signal Encoder
