Power Supply Charger, Single Output,6/12/24VDC @ 4A, 16 to 28 VAC

Item #:DPS5
You must be logged in to order this item.
Log in here

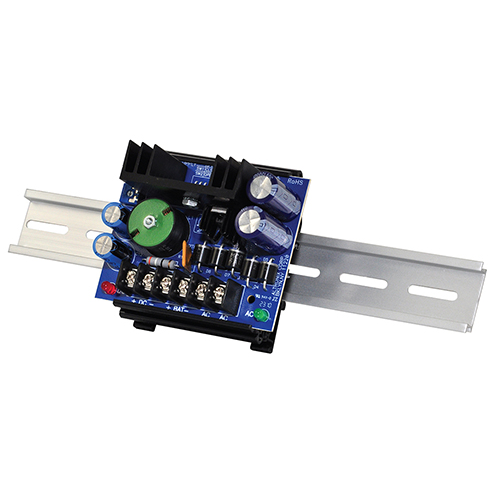

DPS5

Altronix DPS5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Features:

  • Extremely compact design.
  • Includes battery leads.
  • Snap Track compatible (order Altronix model number ST3).

Specifications:
Input:
  • 6VDC applications use TP1640.
  • 12VDC applications use T2428100.
  • 24VDC applications use T2428175.
Output:
  • 6VDC, 12VDC or 24VDC selectable output.
  • 4.0A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Battery short circuit protection (circuit breaker).
Visual Indicators:
  • AC input and DC output LED indicators.
Temperature:
  • Operating 0ºC to 49ºC (32ºF to 120ºF).
  • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.):
      • 6VDC: 12 BTU/Hr.
      • 12VDC: 25 BTU/Hr.
      • 24VDC: 49 BTU/Hr.
    • System AC input VA requirement:
      • 6VDC: 55.2VA.
      • 12VDC/24VDC: 115VA.
